Features

Compact

Throughout the cooling season, Daikin's new inverter models reduce energy consumption

Comfort

Faster cooling and dehumidification: New inverter control technology brings quick comfort

Quick cooling start function
Quickly and easily make space comfortable before the arrival of office workers or shop customers. As well as quick cooling at max. capacity, new inverter control rapidly removes indoor humidity. More than simple temperature reduction, this twin reduction provides greater comfort (within 30 minutes max.).


Durability

Automatic protection against Low voltage

In AM and PM peak electricity consumption periods, supply may fluctuate. Built-in low-voltage protection will automatically cut operations. When normal voltage is restored, operation will resume as before.

Outdoor unit installation is possible even with limited space

Coated printed circuit boards

Coated circuit boards prevent problems caused by humidity and airborne dust.




Self-diagnosis functions enable prompt maintenance response

An error message appears on the LCD of the remote controller and an LED lights up on the unit. When the BRC1 E62 is installed, the error code appears showing contact information and model name. Contact your Daikin dealer and provide the error code and model name. br>


More economy or comfort in special situations

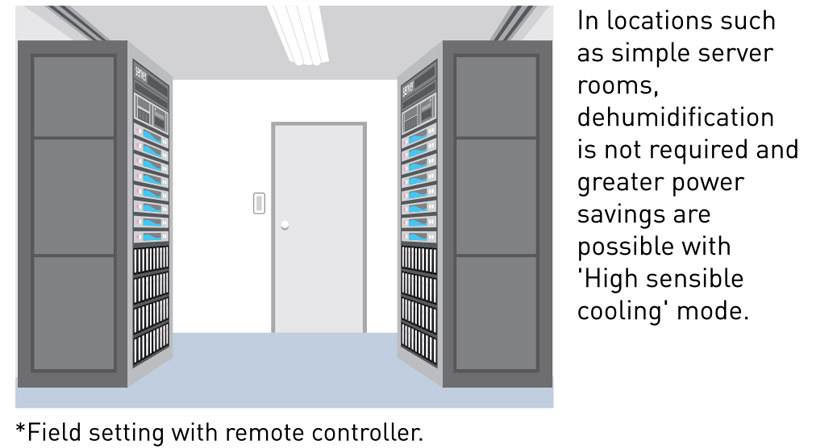

High sensible cooling enables even greater power savings

High dehumidification cooling provides even greater comfort


Convenient functions

Navigation remote controller BRC1E62 includes various convenient functions



Reuse of existing piping

Benefit 1 - Simplified installation reduces replacement time and cost

Benefit 2 - You can increase cooling capacity and achieve higher energy efficiency

Upgrade to an air conditioner with the latest technology for greater comfort and energy efficiency.

Technology

Advanced technology including the use of corrosion resistant electronic expans reliability enables the re-use of existing piping* without the need of pipe flushing for a simplified replacement process.


Design flexibility

Possible to force On-Off operation using external command

(Available in duct connection middle static pressure type and wall mounted type)
*Field setting with remote controller

Off-operation never overlooked if linked to use of hotel keycard: enables overall power savings.

All indoor units comply with DBI -Net standards (connected to RZR series units)




related services

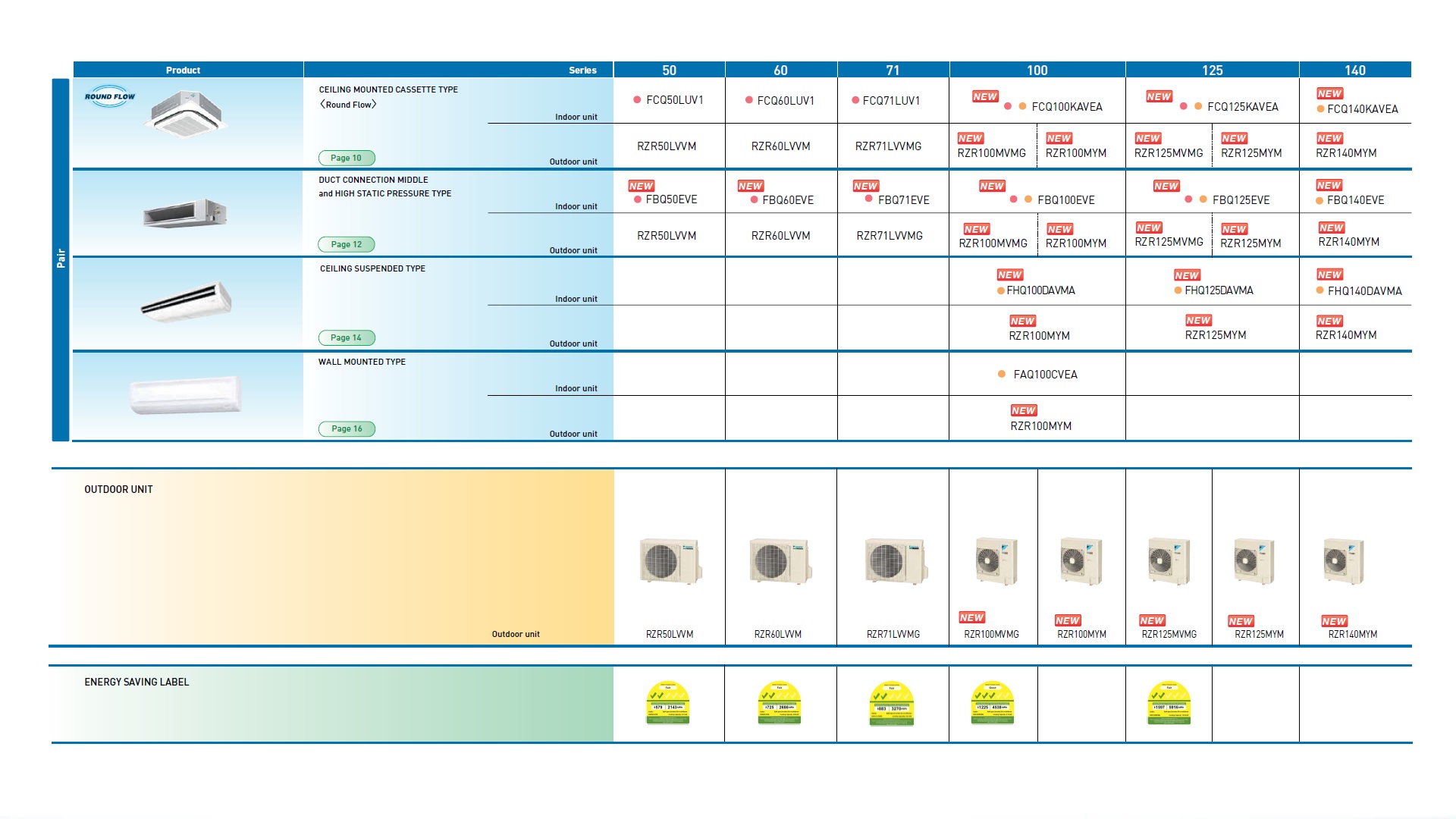

Product Lineup

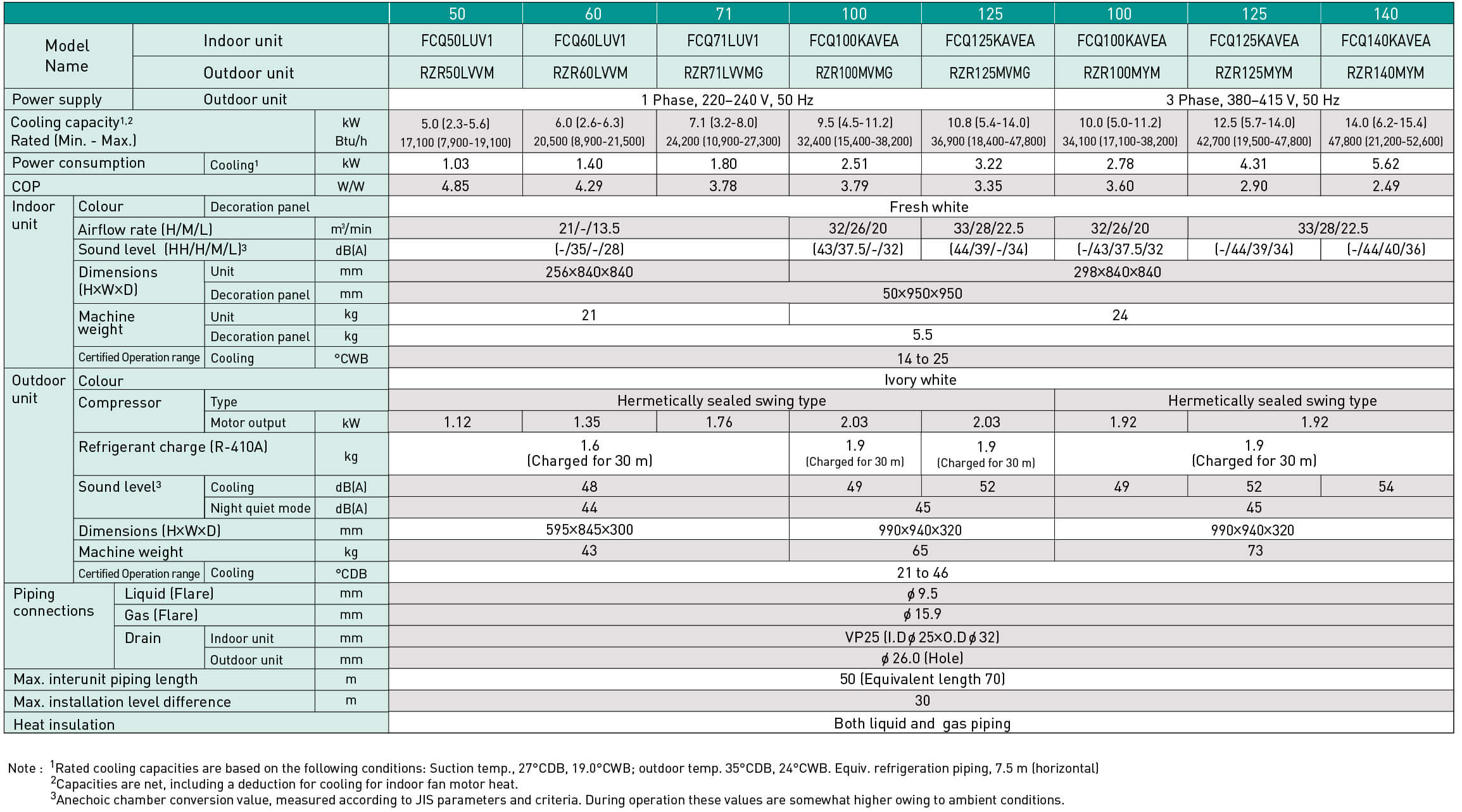

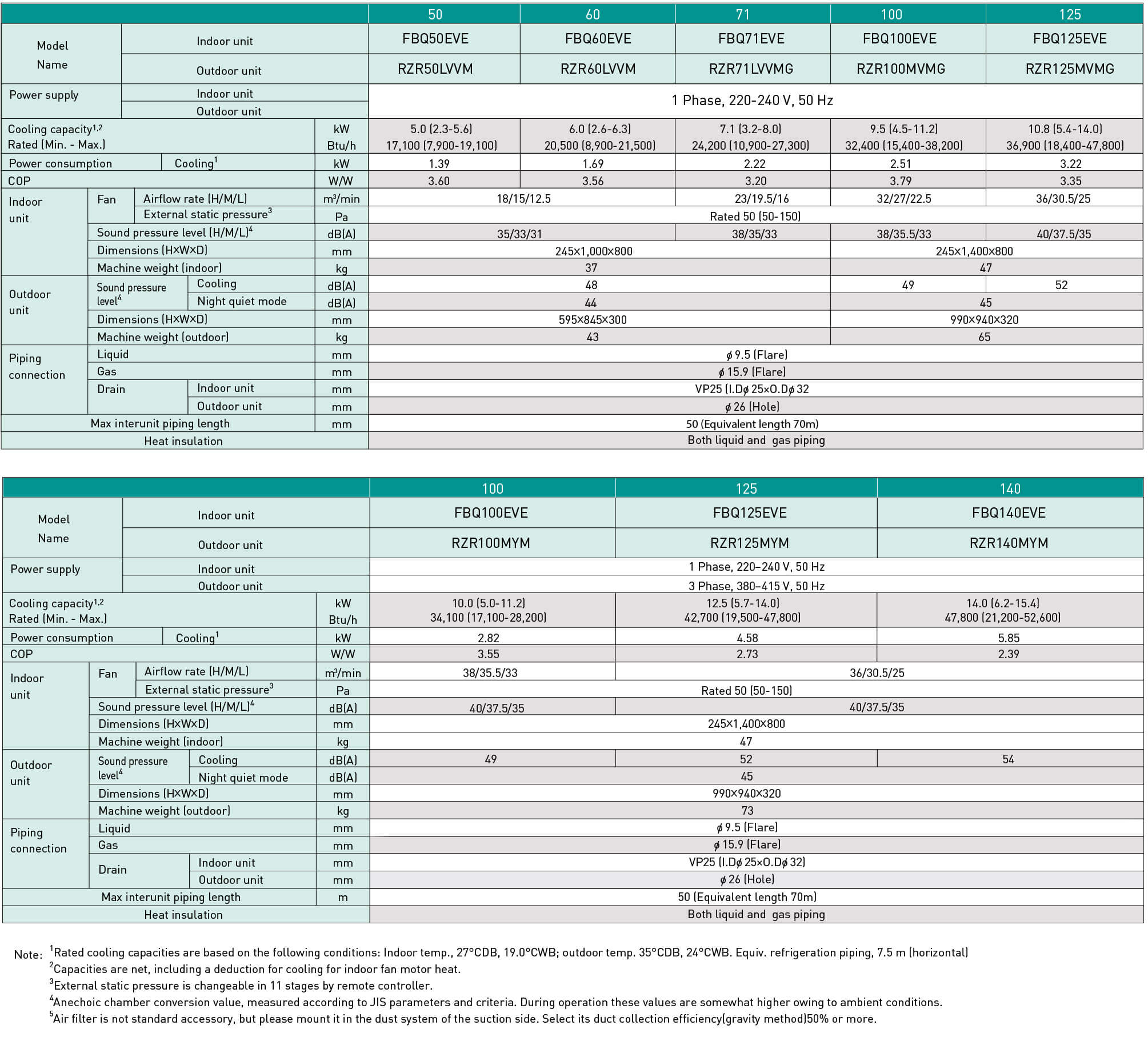

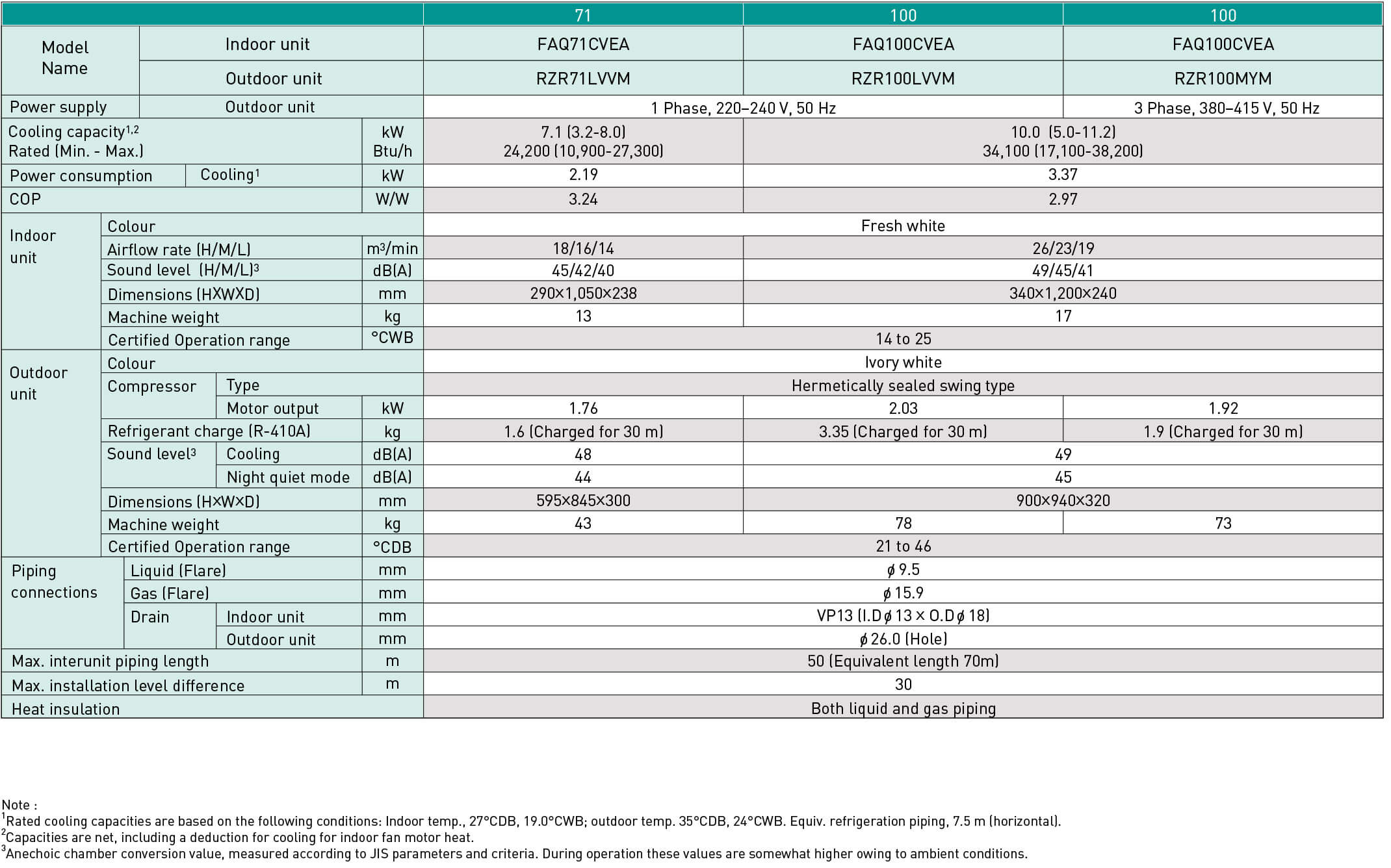

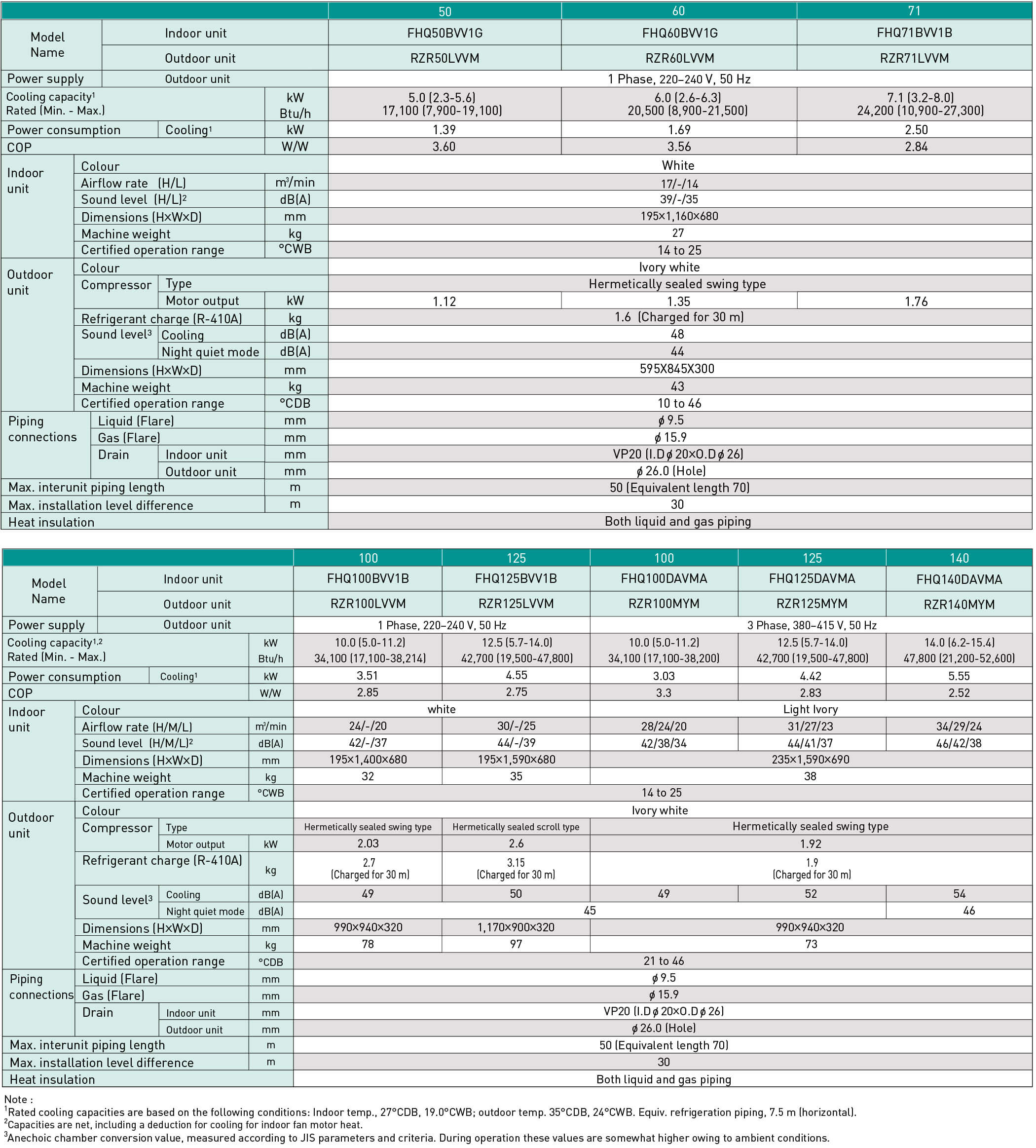

Specifications

CEILING MOUNTED CASSETTE TYPE (Round Flow)
Comfortable Airflow Travels Throughout The Room


DUCT CONNECTION MIDDLE STATIC PRESSURE TYPE
Thinner Design Allows Greater Installation Flexibility


CEILING SUSPENDED TYPE
Cassette Air Conditioner with 360° Uniform Airflow sets The Standard

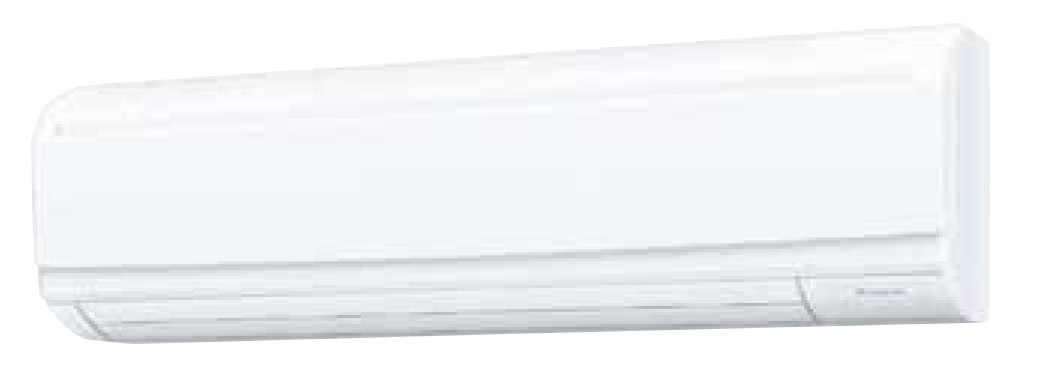

WALL MOUNTED TYPE
Compact Design and Easy Installation
