Features

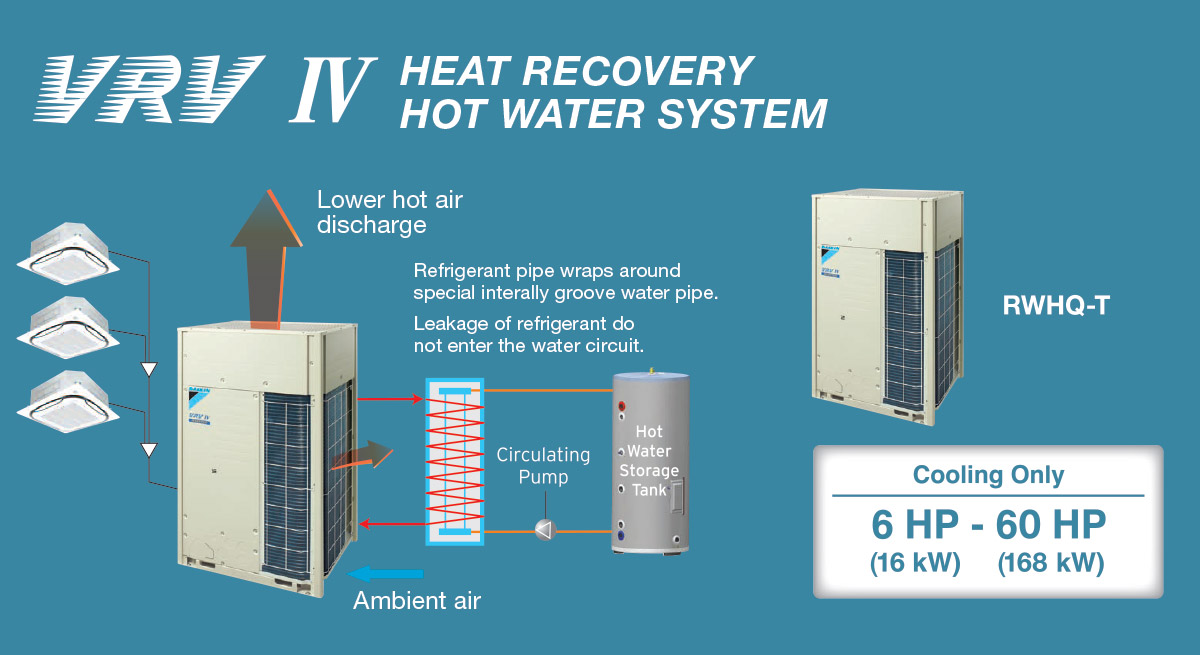

The energy-efficient system recovers waste heat as energy to heat hot water.

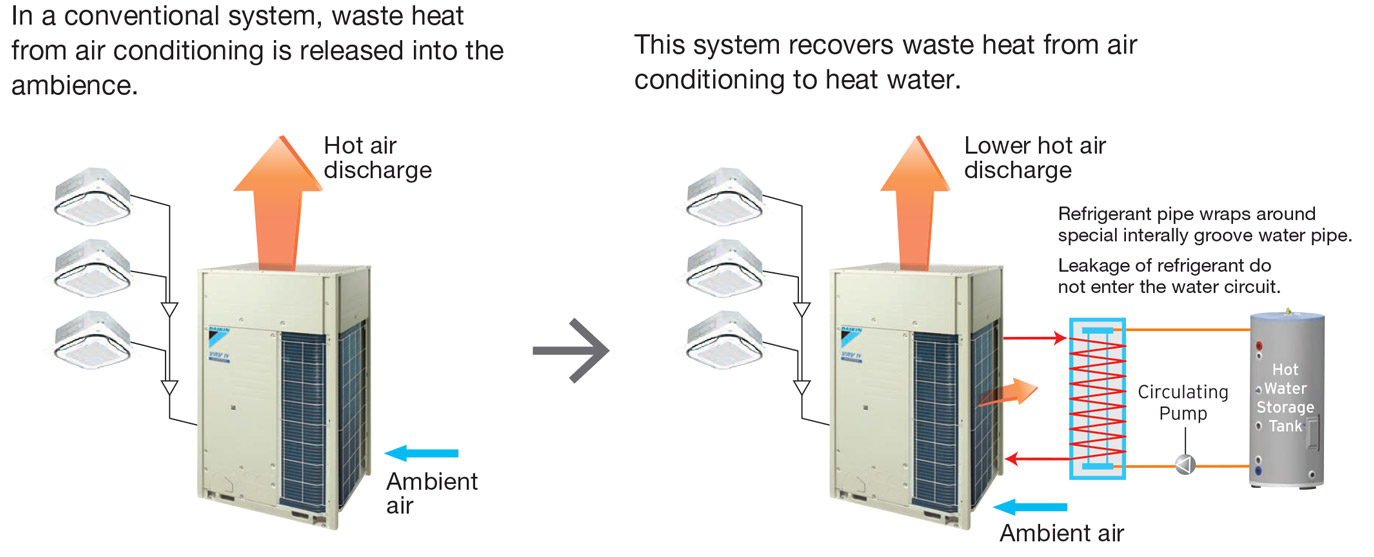

Waste heat from air conditioning (which usually released into the ambience) is recovered to heat water.
The Serpentine Heat Exchanger Unit recovers heat.
Increased energy efficiency of the outdoor unit
The waste heat from air conditioning is transferred to heat water.
This mechanism reduces the amount of heat processed by the outdoor unit, resulting in better operation efficiency.
Reducing short circuits
The temperature of exhaust heat from the outdoor unit is lower, minimising in ambient temperature increase. In the event of a short circuit, capacity reduction is minimised.
Innovative and reliable system

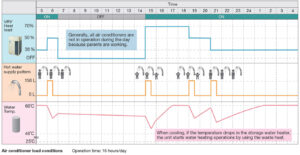

Example on usage of VRV IV Heat Recovery Hot Water System for residence
In a sample family model of 3 adults and 3 children, the waste heat generated by air conditioning is sufficient to supply hot water for everybody’s showers.
Water-heating load Tank capacity: 200 L
Boiling temperature: 25°C to 60°C (tap water)
Amount of hot water per person per time (standard): 50 L/shower (39°C) (water dispensed: 10 L/min.; shower time: 5 min./shower)
Amount of water required in tank to dispense 39°C hot water
VRV IV Heat Recovery Hot Water Controller
Features
Convertible Remote Controller
Main Remote Control & Sub Remote Controller are both convertible and interchangeable.
Anti-Bacteria
By default, this would be activated every Monday morning at 2am, heating storage water up to 60°C for 10 minutes.
Vacation Mode
This disable all other functions, except for anti-bacterial mode.
Auto Restart
When power supply is restored after a failure, the system would revert to the last operational function.
Safety-Error Code
If thermistors or communication line are faulty, as a safety precaution, operation of the electric heater is disabled.

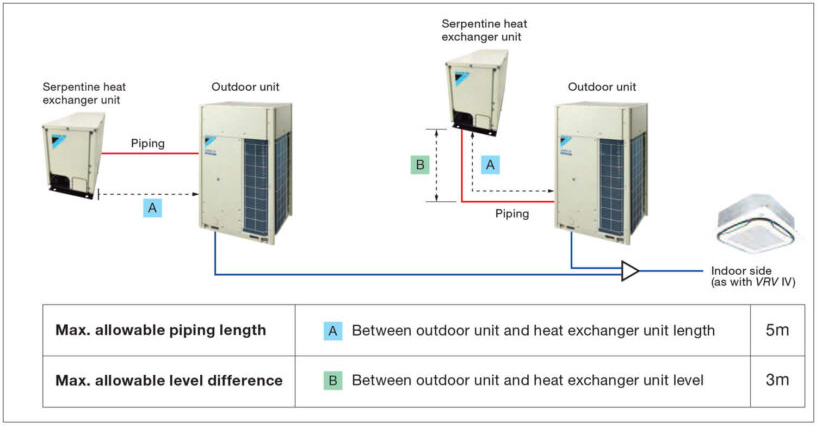

VRV IV Heat Recovery Hot Water System overview
Schematic Diagram For Residential Application
Schematic Diagram For Commercial Application
Specifications
Outdoor Units
High-COP Type
|
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| MODEL | RWHQ12THYM | RWHQ14THYM | RWHQ16THYM | RWHQ18THYM | RWHQ20THYM | RWHQ22THYM | RWHQ24THYM | ||
| Combination units | RWHQ6TYM | RWHQ6TYM | RWHQ8TYM | RWHQ6TYM | RWHQ6TYM | RWHQ6TYM | RWHQ8TYM | ||
| RWHQ8TYM | RWHQ8TYM | RWHQ8TYM | RWHQ6TYM | RWHQ8TYM | RWHQ8TYM | RWHQ8TYM | |||
| — | — | — | RWHQ6TYM | RWHQ8TYM | RWHQ8TYM | RWHQ8TYM | |||
| Power supply | 3-phase 4-wire system, 380-415/380 V, 50/60 Hz | ||||||||
| Cooling capacity | kcal/h | 27,500 | 33,000 | 38,500 | 41,300 | 46,800 | 52,300 | 57,800 | |
| Btu/h | 109,000 | 131,000 | 153,000 | 164,000 | 186,000 | 207,000 | 229,000 | ||
| kW | 32.0 | 38.4 | 44.8 | 48.0 | 54.4 | 60.8 | 67.2 | ||
| Power consumption | kW | 7.10 | 8.68 | 10.3 | 10.7 | 12.2 | 13.8 | 15.4 | |
| Capacity control | % | 10-100 | 10-100 | 10-100 | 7-100 | 7-100 | 7-100 | 7-100 | |
| Casing colour | Ivory white (5Y7.5/1) | ||||||||
| Compressor | Type | Hermetically Sealed Scroll Type | |||||||
| Motor output | kW | (2.4×1)+(2.4×1) | (2.4×1)+(3.4×1) | (3.4×1)+(3.4×1) | (2.4×1)+(2.4×1)+(2.4×1) | (2.4×1)+(2.4×1)+(3.4×1) | (2.4×1)+(3.4×1)+(3.4×1) | (3.4×1)+(3.4×1)+(3.4×1) | |
| Airflow rate | m³/min | 119+119 | 119+157 | 157+157 | 119+119+119 | 119+119+157 | 119+157+157 | 157+157+157 | |
| Dimensions (H×W×D) | mm | (1,657×930×765)+(1,657×930×765) | (1,657×930×765)+(1,657×930×765)+(1,657×930×765) | ||||||
| Machine weight | kg | 185+185 | 185+185+185 | ||||||
| Sound level | dB(A) | 58 | 59 | 59 | 60 | 60 | 60 | 61 | |
| Operation range | °CDB | 15 to 49 | |||||||
| Refrigerant | Type | R-410A | |||||||
| Charge | kg | 6.4+6.4 | 6.4+6.4 | 6.4+6.4 | 6.4+6.4+6.4 | 6.4+6.4+6.4 | 6.4+6.4+6.4 | 6.4+6.4+6.4 | |
| Piping connections (Indoor unit) |
Liquid | mm | φ12.7 (Brazing) |
φ12.7 (Brazing) |
φ12.7 (Brazing) |
φ15.9 (Brazing) |
φ15.9 (Brazing) |
φ15.9 (Brazing) |
φ15.9 (Brazing) |
| Gas | mm | φ28.6 (Brazing) |
φ28.6 (Brazing) |
φ28.6 (Brazing) |
φ28.6 (Brazing) |
φ28.6 (Brazing) |
φ28.6 (Brazing) |
φ34.9 (Brazing) |
|
| Piping connections (Heat exchanger unit) |
Inlet pipe | mm | φ19.1 (Brazing×2) | φ19.1 (Brazing×3) | |||||
| Outlet pipe | mm | φ19.1 (Brazing×2) | φ19.1 (Brazing×3) | ||||||
Note: Specifications are based on the following conditions;
•Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB,
Equivalent piping length: 7.5 m, Level difference: 0 m.
•Sound level: Anechoic chamber conversion value, measured at a point
1 m in front of the unit at a height of 1.5 m.
During actual operation, these values are normally somewhat
higher as a result of ambient conditions.
Standard Type
|
|
|
|||||||
|---|---|---|---|---|---|---|---|---|
| MODEL | RWHQ6TYM | RWHQ8TYM | RWHQ10TYM | RWHQ12TYM | RWHQ14TYM | RWHQ16TYM | ||
| Combination units | — | — | — | — | — | — | ||
| Power supply | 3-phase 4-wire system, 380-415/380 V, 50/60 Hz | |||||||
| Cooling capacity | kcal/h | 13,800 | 19,300 | 24,100 | 28,800 | 34,400 | 38,700 | |
| Btu/h | 54,600 | 76,400 | 95,500 | 114,000 | 136,000 | 154,000 | ||
| kW | 16.0 | 22.4 | 28.0 | 33.5 | 40.0 | 45.0 | ||
| Power consumption | kW | 3.55 | 5.13 | 7.22 | 8.93 | 10.8 | 12.9 | |
| Capacity control | % | 20-100 | 20-100 | 16-100 | 15-100 | 11-100 | 10-100 | |
| Casing colour | Ivory white (5Y7.5/1) | |||||||
| Compressor | Type | Hermetically Sealed Scroll Type | ||||||
| Motor output | kW | 2.4×1 | 3.4×1 | 4.1×1 | 5.2×1 | (2.9×1)+(3.3×1) | (3.6×1)+(3.7×1) | |
| Airflow rate | m³/min | 119 | 157 | 165 | 178 | 233 | 233 | |
| Dimensions (H×W×D) | mm | 1,657×930×765 | 1,657×1,240×765 | |||||
| Machine weight | kg | 185 | 185 | 200 | 200 | 285 | 285 | |
| Sound level | dB(A) | 55 | 56 | 57 | 59 | 60 | 61 | |
| Operation range | °CDB | 15 to 49 | ||||||
| Refrigerant | Type | R-410A | ||||||
| Charge | kg | 6.4 | 6.4 | 6.5 | 6.8 | 10.3 | 10.4 | |
| Piping connections (Indoor unit) |
Liquid | mm | φ9.5 (Brazing) |
φ12.7 (Brazing) |
||||
| Gas | mm | φ19.1 (Brazing) |
φ22.2 (Brazing) |
φ28.6 (Brazing) |
||||
| Piping connections (Heat exchanger unit) |
Inlet pipe | mm | φ19.1 (Brazing) | |||||
| Outlet pipe | mm | φ19.1 (Brazing) | ||||||
Note: Specifications are based on the following conditions;
•Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB,
Equivalent piping length: 7.5 m, Level difference: 0 m.
•Sound level: Anechoic chamber conversion value, measured at a point
1 m in front of the unit at a height of 1.5 m.
During actual operation, these values are normally somewhat
higher as a result of ambient conditions.
Space Saving Type
|
|
|||||
|---|---|---|---|---|---|---|
| MODEL | RWHQ18TYM | RWHQ20TYM | RWHQ22TSYM | RWHQ24TSYM | ||
| Combination units | — | — | RWHQ10TYM | RWHQ12TYM | ||
| RWHQ12TYM | RWHQ12TYM | |||||
| — | — | |||||
| Power supply | 3-phase 4-wire system, 380-415/380 V, 50/60 Hz | |||||
| Cooling capacity | kcal/h | 43,000 | 48,200 | 52,900 | 57,600 | |
| Btu/h | 171,000 | 191,000 | 210,000 | 229,000 | ||
| kW | 50.0 | 56.0 | 61.5 | 67.0 | ||
| Power consumption | kW | 15.3 | 17.9 | 16.2 | 17.9 | |
| Capacity control | % | 10-100 | 8-100 | 8-100 | 8-100 | |
| Casing colour | Ivory white (5Y7.5/1) | |||||
| Compressor | Type | Hermetically Sealed Scroll Type | ||||
| Motor output | kW | (4.4X1)+(4.0X1) | (4.6X1)+(5.5X1) | (4.1X1)+(5.2X1) | (5.2X1)+(5.2X1) | |
| Airflow rate | m³/min | 233 | 268 | 165+178 | 178+178 | |
| Dimensions (H×W×D) | mm | 1,657×1,240×765 | 1,657×1,240×765 | (1,657×930×765)+(1,657×930×765) | (1,657×930×765)+(1,657×930×765) | |
| Machine weight | kg | 285 | 320 | 200+200 | 200+200 | |
| Sound level | dB(A) | 62 | 65 | 61 | 62 | |
| Operation range | °CDB | 15 to 49 | ||||
| Refrigerant | Type | R-410A | ||||
| Charge | kg | 10.5 | 11.8 | 6.5+6.8 | 6.8+6.8 | |
| Piping connections (Indoor unit) |
Liquid | mm | φ15.9 (Brazing) |
φ15.9 (Brazing) |
φ15.9 (Brazing) |
φ15.9 (Brazing) |
| Gas | mm | φ28.6 (Brazing) |
φ28.6 (Brazing) |
φ28.6 (Brazing) |
φ34.9 (Brazing) |
|
| Piping connections (Heat exchanger unit) |
Inlet pipe | mm | φ19.1 (Brazing) | φ19.1 (Brazing×2) | ||
| Outlet pipe | mm | φ19.1 (Brazing) | φ19.1 (Brazing×2) | |||
Note: Specifications are based on the following conditions;
•Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB,
Equivalent piping length: 7.5 m, Level difference: 0 m.
•Sound level: Anechoic chamber conversion value, measured at a point
1 m in front of the unit at a height of 1.5 m.
During actual operation, these values are normally somewhat
higher as a result of ambient conditions.
HWHQ30A
|
New Model Name (RWHQ-TYM, WHHQ30A) |
Single Heat Exchanger Unit | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
RWHQ6TYM +HWHQ30A |
RWHQ8TYM +HWHQ30A |
RWHQ10TYM +HWHQ30A |
RWHQ12TYM +HWHQ30A |
RWHQ14TYM +HWHQ30A |
RWHQ16TYM +HWHQ30A |
RWHQ18TYM +HWHQ30A |
RWHQ20TYM +HWHQ30A |
|||
Rated inlet temperature |
°C |
40 | ||||||||
Rated water flow |
L/min |
10 | ||||||||
Range of inlet temperature |
°C |
20-65 | ||||||||
Range of water flow |
L/min |
5-20 | ||||||||
Rated Hot-water capacity1 |
kW |
3.2 | 3.3 | 3.3 | 3.5 | 3.7 | 4.0 | 4.2 | 4.4 | |
Machine weight |
kg |
27 | ||||||||
Diameter of Refrigerant pipe (Gas) |
mm |
φ19.1 (Braze) | ||||||||
Diameter of Refrigerant pipe (Liquid) |
mm |
φ19.1 (Braze) | ||||||||
Diameter of water pipe (Inlet) |
mm |
φ25.4 (Screw) | ||||||||
Diameter of water pipe (Outlet) |
mm |
φ25.4 (Screw) | ||||||||
Piping length (max) |
m |
2 (5) | ||||||||
Design pressure (Water side) |
MPa |
0.5 | ||||||||
Loss of Head2 |
m |
0.2 | ||||||||
Casing colour |
Ivory white (5Y7.5/1) | |||||||||
Dimensions (H×W×D) |
mm |
446 × 306 × 765 | ||||||||
Notes: It is necessary to satisfy the water standard of Daikin for the water that is used.
In the case that the water standard is not satisfied, special measures are required.
Please contact your local sales office for details.
*1: [Cooling] Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB,
Inlet water temperature 40°C, Water flow 10 L/min,
Indoor load 100%, Outdoor-Heat Exchanger Unit 2m.
*2: Water flow 10 L/min.
