Daikin DSP Materials
We provide installation materials to support dealers and contractors.
Special promotion is available now.
Copper Pancake
Straight Copper Pipes
Trunking
uPVC Drainage Pipe
Insulation
Gas Tight Joint
Header Pack
Refrigerants
DSP Condensate Pump
Seamless Copper Pancake Coil
DSP Seamless Copper Pancake Coil is manufactured to the stringent quality standards, so as to ensure excellent performance with highest quality cathode copper with 99.9% Cu is used.
| Size | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" |
|---|---|---|---|---|---|
| List Price(SGD) /Per Piece | $23.20 | $37.30 | $51.90 | $65.50 | $78.60 |
| Information | 12pcs /box | 10pcs /box | 8pcs /box | 6pcs /box | 5pcs /box |
Additional information:- SWG22 | Wall Thickness: 0.71mm | Temper: Annealed | Length: 15m /coil
| Size | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" |
|---|---|---|---|---|---|
| List Price(SGD) /Per Piece | $18.50 | $29.50 | $41.50 | $52.30 | $62.70 |
| Information | 12pcs /box | 10pcs /box | 8pcs /box | 6pcs /box | 5pcs /box |
Additional information:- SWG22 | Wall Thickness: 0.71mm | Temper: Annealed | Length: 12m /coil (NEW!)
Straight Copper Pipes
DSP Straight Copper Pipe is manufactured to the stringent quality standards, so as to ensure excellent performance with highest quality cathode copper with 99.9% Cu is used.
| Size | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" | 7/8" | 1" | 1 1/8" | 1 3/8" | 1 5/8" |
|---|---|---|---|---|---|---|---|---|---|---|
| List Price(SGD) | $12.00 | $15.00 | $20.00 | $25.00 | $30.00 | $35.00 | $40.00 | $45.00 | $53.00 | $63.00 |
Additional information:- SWG22 | Wall Thickness: 0.71mm | Temper: Hard Drawn | Length: 5.8m
| Size | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" | 7/8" | 1" | 1 1/8" | 1 3/8" | 1 5/8" |
|---|---|---|---|---|---|---|---|---|---|---|
| List Price(SGD) | $15.00 | $20.00 | $25.00 | $35.00 | $40.00 | $45.00 | $50.00 | $60.00 | $71.00 | $76.00 |
Additional information:- SWG21 | Wall Thickness: 0.81mm | Temper: Hard Drawn | Length: 5.8m
Download Brochure
Certification
Trunking
DSP Trunking offer a range of unique characteristics that make it versatile in its field of application and are white in colour which are commonly used as cable ducting.
| Size | 2"x1.5" | 2"x2" | 3"x2" | 3"x2.5" | 3"x3" | 4"x2" | 4"x2.5" | 4"x3" | 4"x4" | 5"x4" | 6"x4" | 8"x4" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| List Price(SGD) | $3.04 | $4.16 | $4.72 | $5.12 | $6.60 | $6.00 | $6.48 | $8.32 | $10.40 | $14.56 | $18.72 | $20.80 |
Additional information:- Colour: White | Length: 8ft (2.44m)
Comply: 315 SS275:1999
uPVC Drainage Pipe
DSP uPVC Drainage Pipe offer a range of unqiue characteristics that make it versatile in its field of application and are grey in colour which are commonly used as flush pipe and air-conditioning water discharge outlet. The pipes can be readily joined by solvent welding that minimuse the flow of obstructions.
| Size | 13mm | 16mm | 20mm | 25mm |
|---|---|---|---|---|
| List Price(SGD) | $1.20 | $1.60 | $2.00 | $2.60 |
Additional information:- Colour: Grey | Length: 2.9m
Comply: 315 SS275:1999
Closed Cell Tubing, Sheet & Roll Insulation
DSP Closed Cell Elastomeric Nitrile Rubber Tubing and Sheet Insulation are uncompromising and reliable which meet the technical insulation demands to reduce energy consumption and prevent condensation as well as corrosion under the insulation of air-conditioning and refrigeration (ACR) applications
Class "1"
| Thickness | 1/4" | 3/8" | 1/2" | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Size | 7/8" | 1" | 1 1/8" | 1 3/8" | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" |
| List Price(SGD) /Per Piece | $1.00 | $1.20 | $1.40 | $1.70 | $1.00 | $1.20 | $1.40 | $1.50 | $1.70 |
| Information | 90pcs /box | 80pcs /box | 49pcs /box | 36pcs /box | 100pcs /box | 90pcs /box | 70pcs /box | 63pcs /box | 56pcs /box |
Additional information:- Closed Cell Tubing Length: 6ft (1.83m) | Sheet Flat Length: 4x3ft (1.22x0.91m) | Sheet Roll Length: 4x30ft (1.22x9.14m)
Download Brochure
Certification
Class "0" (Insulation Thickness: 1/4") [NEW]
| Size | 7/8" |
|---|---|
| List Price(SGD) /Per Piece | $1.30 |
| Information | 90pcs /box |
Additional information:- Closed Cell Tubing Length: 6ft (1.83m) | Sheet Flat Length: 4x3ft (1.22x0.91m) | Sheet Roll Length: 4x30ft (1.22x9.14m)
Download Brochure
Certification
Class "0" (Insulation Thickness: 1/2")
| Size | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" |
|---|---|---|---|---|---|
| List Price(SGD) /Per Piece | $1.40 | $1.60 | $1.70 | $1.90 | $2.10 |
| Information | 100pcs /box | 90pcs /box | 70pcs /box | 63pcs /box | 56pcs /box |
Additional information:- Closed Cell Tubing Length: 6ft (1.83m) | Sheet Flat Length: 4x3ft (1.22x0.91m) | Sheet Roll Length: 4x30ft (1.22x9.14m)
Download Brochure
Certification
Class "0" (Insulation Thickness: 3/4")
| Size | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" | 7/8" | 1 1/8" | 1 3/8" | 1 5/8" |
|---|---|---|---|---|---|---|---|---|---|
| List Price(SGD) /Per Piece | $2.50 | $3.00 | $3.60 | $3.80 | $4.00 | $5.00 | $5.50 | $6.00 | $6.50 |
| Information | 48pcs /box | 36pcs /box | 30pcs /box | 30pcs /box | 26pcs /box | 24pcs /box | 20pcs /box | 18pcs /box | 16pcs /box |
Additional information:- Closed Cell Tubing Length: 6ft (1.83m) | Sheet Flat Length: 4x3ft (1.22x0.91m) | Sheet Roll Length: 4x30ft (1.22x9.14m)
Download Brochure
Certification
Class "0" (Insulation Thickness: 1")
| Size | 3/8" | 1/2" | 5/8" | 3/4" | 7/8" | 1 1/8" | 1 3/8" | 1 5/8" |
|---|---|---|---|---|---|---|---|---|
| List Price(SGD) /Per Piece | $4.30 | $4.60 | $4.80 | $5.20 | $5.70 | $7.60 | $8.50 | $9.50 |
| Information | 30pcs /box | 28pcs /box | 24pcs /box | 20pcs /box | 20pcs /box | 18pcs /box | 15pcs /box | 12pcs /box |
Additional information:- Closed Cell Tubing Length: 6ft (1.83m) | Sheet Flat Length: 4x3ft (1.22x0.91m) | Sheet Roll Length: 4x30ft (1.22x9.14m)
Daikin Gas Tight Joint (DGT)
Daikin Gas Tight Joint (DGT) is non-brazed connection for Refrigerant piping. DGT meets with the stringent requirements in terms of safety and leak tightness while providing substantial benefits.
i) Enhanced Safety with no brazing required.
ii) Time Saver with easy fitting installation.
iii) Less labour intensive.
iv) No Hot Work Permit application is required
| Size(Diameter) | 6.4mm | 9.5mm | 12.7mm | 15.9mm | 19.1mm | 22.2mm | 28.6mm | 34.9mm | 41mm |
|---|---|---|---|---|---|---|---|---|---|
| List Price(SGD) | $22.00 | $22.00 | $30.00 | $30.00 | $60.00 | $60.00 | $60.00 | $60.00 | $80.00 |
Additional information:
Applicable Refrigerant: R32,R410A,R407C and Other HFC refrigerant
Applicable Refrigerant oil: Ether oil, Ester oil, Polyol ester oil, Polyalkylene glycol oil
Max. Pressure: 4.3Mpa | Min. Pressure: -755mmHg | Max. Temp: 130℃ | Min. Temp -45℃ | Standard ISO: ISO14903
Header Pack
Header Pack Connects Up to 6 Indoor Units.
- Quick Flare Nut Connection
- Easy to Install (No Need of Brazing)
- Installation Time Saving (1/3 of Conventional)
- Easy, Soft Copper Tube Piping
- Safety (No Fire Hazard In The Building)
- Space Saving (Attic Height Reduction by 300mm)
| HP | 8 | 10 | 16 |
|---|---|---|---|
| Indoor Unit Total Capacity Index | 150≦ X < 200 | 200≦ X < 290 | 290≦ X < 420 |
| Outdoor Unit Piping Connections Diameter [Liquid/Gas] | 9.5mm/19.1mm | 9.5mm/22.2mm | 12.7mm/28.6mm |
| Indoor Unit Piping Connections Diameter [Liquid/Gas] | (9.5mm/15.9mm)x3,(6.4mm/12.7mm)x3 | (9.5mm/15.9mm)x3,(6.4mm/12.7mm)x3 | (9.5mm/15.9mm)x3,(6.4mm/12.7mm)x3 |
| List Price(SGD) | $430 | $430 | $460 |

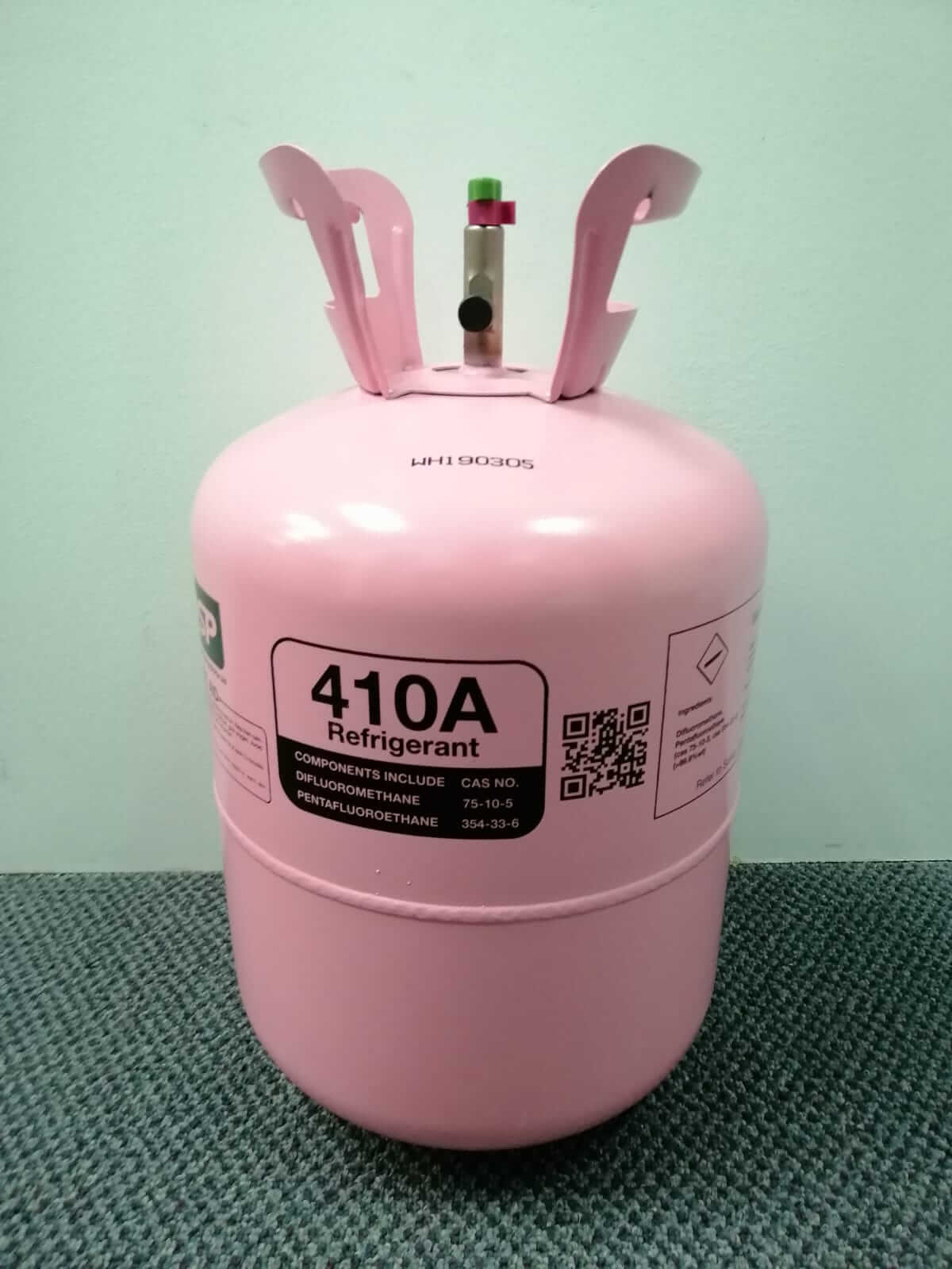

R410A Refrigerant Gas
Widely used for many air conditioning appliances, usually packed in rose colour cyclinders.
- Reliable
- Quality Assurance
- One-Stop Solution for Materials and Accessories
- Applicable to all types of R410A products
| Type | R410A |
|---|---|
| List Price(SGD) | $70.00 |
.PNG)

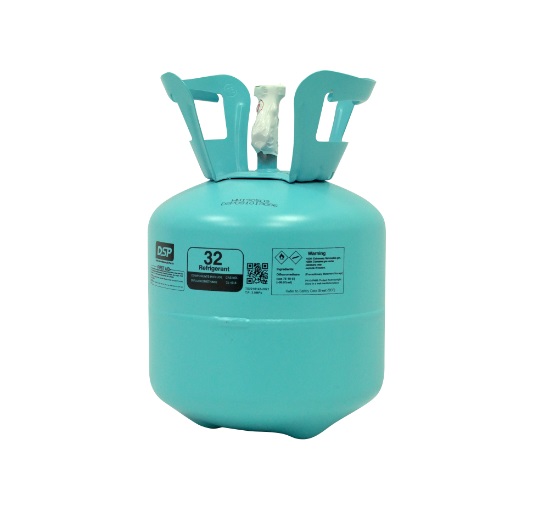

R32 Refrigerant Gas
Commonly used in heating ventilation air-conditioning (HVAC) equipment and is efficient in conveying heat. It is usually packaged in blue colour cylinders.
- Energy efficient
- Environmental-friendly
- Installation Time Saving (1/3 of Conventional)
- Easy to use and charge in liquid state, using an upright position
| Type | R32 |
|---|---|
| List Price(SGD) | $50.00 |
.jpg)
R134a Refrigerant Gas
Commonly used in many air conditioning applications, usually packaged in blue colour cylinders.
- Zero ozone layer depleting properties
- Very commonly used in the area of centrifugal, rotary screw, scroll and reciprocating compressors
| Type | R134a |
|---|---|
| List Price(SGD) | $90.00 |
.jpg)
Anti-mould & Bacterial Prefilters
Anti-mould & Bacterial Prefilters stop the growth of mould and bacteria and create a healthy living with one of it’s unique abilities to reduce allergens, thus maintaining clean air in your premise.
- Suppress the growth of mould and bacteria which prevents virus and mould propagation
- Suppress the mould stains and odor on the inside of the indoor unit
- Washable and reusable, reducing cleaning time
| Type | Sheet: Cassette Type (570(W) x 570(L) x 3(T)) | Roll: Ceiling Suspended/ Wall Mounted/ Ducted Type ( 25,000(W) x 900(L) x 3(T)4700) |
|---|---|---|
| List Price(SGD) | $40.00 | $1400.00 |
| PCS | 1 PC | Cut up to 42 PCS (570 W x 570 L x 3(T)) |
Bio-Antibody Filter
Our Bio-Antibody filter is 100% made in Japan and is able to suppress virus within 1 minute.
- Suppress virus effectively within one minute
- No chemical substance/ method is used
- Applicable to all cassette, ceiling suspended, wall-mounted & ducted fan coil units
- Easy to install
| Type | Cassette Type (545(W) x 555(L) x 0.2(H)) | Ceiling Suspended/ Wall-mounted/ Ducted Type ( 765(W) x 300(L) x 0.2(H)) |
|---|---|---|
| List Price(SGD) | $120.00 | $120.00 |
| Number of PCS | 2 PCS | 4 PCS |
Anti-Bacteria Agents
It prevents the formation of slime and mould in drain pan as well as eliminating smell.
- Stops growth of bacteria, slime & mould
- Reduces maintenance
- Easy to use for all types of air-conditioners
| Type | Anti-Bacteria Agents (20g) | Anti-Bacteria Agents (9g) |
|---|---|---|
| List Price(SGD) | $20.00 | $10.00 |
DSP Condensate Pumps
It is suitable for all voltage in the world and the unique selling point will be its quiet and non-vibration function.
- Energy saving and environmental protection design
- Big flow rate suits all kinds of A/C system
- Waterproof float made of rubber material
- Individual dual control line, increasing safety
| Type | Condensate Pump |
|---|---|
| List Price(SGD) | $90.00 |
Certificates
.PNG)
SGBC Sheet
SGBC Tubing
TUV Coil Pipe
TUV Insulation
TUV Straight Pipe
TUV Trunking
Project References
| Project | ||||
|---|---|---|---|---|
| NUS-Kent Vale | Oriental Motor @ No. 2 Kaki Bukit Ave 1 | No. 81 Tras Street | No. 57 Pioneer Road | MCR, 21 Meyyppa Chettiar Road |
| PCF-Punggol | NO.31A Micheal Road | 76 West Coast Grove | 18 One Tree Hill | TTSH - AMK Specialist |
| No. 8 Jalan Kelawar | Applied Material Building | 1, North Coast Drive | SMRT Mrt Station | The Perumal |
| Showflat @ West Coast Vale | NCS @ No. 63 Ang Mo Kio | No. 1 Jalan Berseh New World Centre | No. 40 Chestnut Crescent | Parc Esta |
| French Embassy | DBS @ Bedok | 67, Sungei Road | 115 Sennett Ave | 150 Prince Charles Crescent |
| No. 55 Jalan Tenan | 3 Dalvey Plot 6 | Parc Botannia @ Fernvale Road | Church of St Anthony | Rockwell Collins Sea/td> |
| Ikea @ Tampines | POSB @ Tanjong Pagar | No. 3 Changi South St.1 | Mont Bontanik Residence | |
| Toppan Security | POSB @ Jurong Point | Paterson Road - Service Apartment | 71 Jurong Island HighWay | |
| NO. 22 Wilby Road | DBS @ Upper Changi Road | 241, Pasir Panjang Road | Jurong Island (QA/QC-Building) | |
| Woodland Ave 9 (opp Shell Petrol Station) | No. 31 Cassia Drive | French School @ Lycee Francais De Singapour | 56 Jalan Sukachita |
FAQs
- What gauge is the copper pipe?
-
For Copper Pancake our gauge is 22. For Straight Pipe our gauge is 21/22. Find out more here.
- What brand is the copper?
-
Our copper brand is DSP.
- Do you have any certificates?
-
Yes, all our accessories are tested and have TUV Certificate. Find out more here.
- Do you sell gas?
-
Yes, we have R410,R134A, R32 and reclaimed refrigerants. Find out more here.
- For other product enquiries
-
Please contact us at 93875118.
