Daikin offers several types of Building Management System (BMS) products such as EcoStruxure System Overview, Enterprise Server-EcoStruxure Building Operation, SmartX AS-P Server, Automation Server I/O Module Family, SmartX AS-B Server, MP-C SmartX IP Controller, RP-C SmartX IP Controller, MicroNet BACnet VAV Controllers.

Buiding Management System (Powered by Schneider Electric)

As MASTER EcoXpert certified by Schneider Electric (SE), we provide innovative building management, power management systems and small building control products that enable deliver optimal energy and operational efficiency.

EcoStruxure System Overview

The EcoStruxture System Overview unlocks building value and unleashes productivity. It is the next generation of EcoStruxure Building from Schneider Electric (SE). This Open Innovation Platform of Buildings is a collaborative Internet of Things (IoT) solution that features a scalable, secure and global architecture to create future-ready smart buildings.

EcoStruxure Building securely connects hardware, software, and services over an Ethernet IP backbone to:

Maximize building efficiency
Optimize comfort and productivity
Increase building value
High capacity option for higher airflow

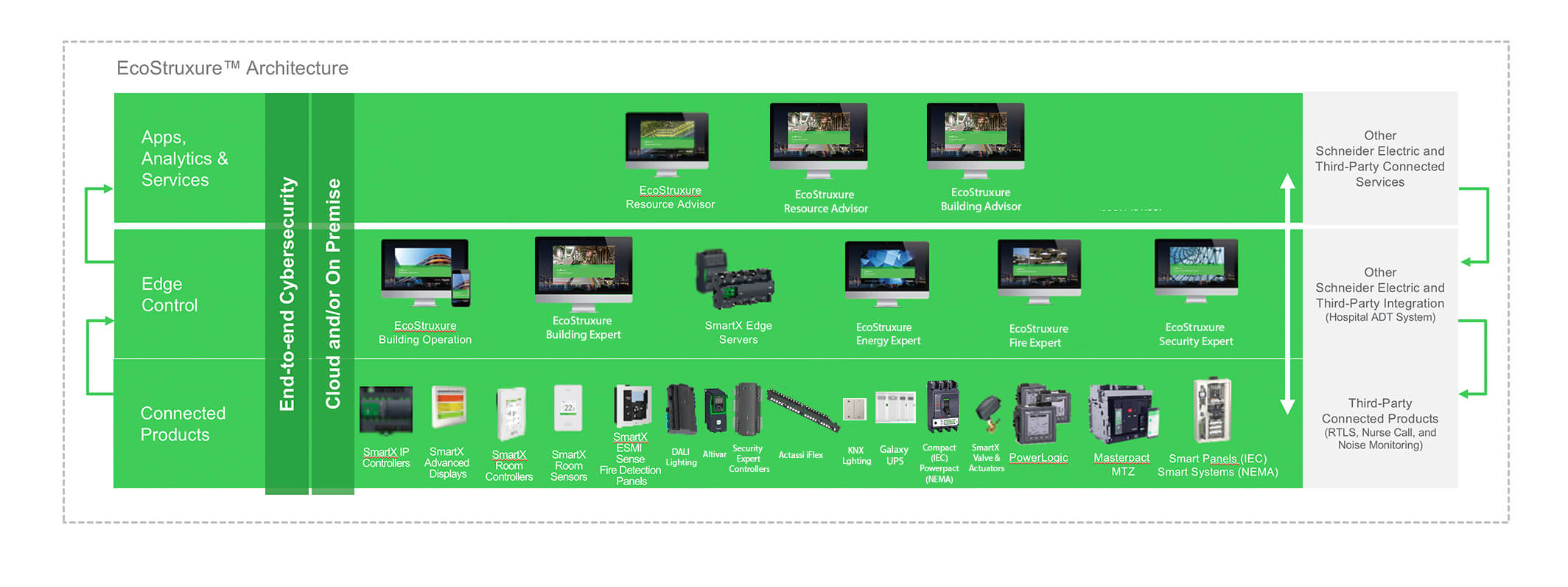

EcoStruxure Architecture

Download Catalogue

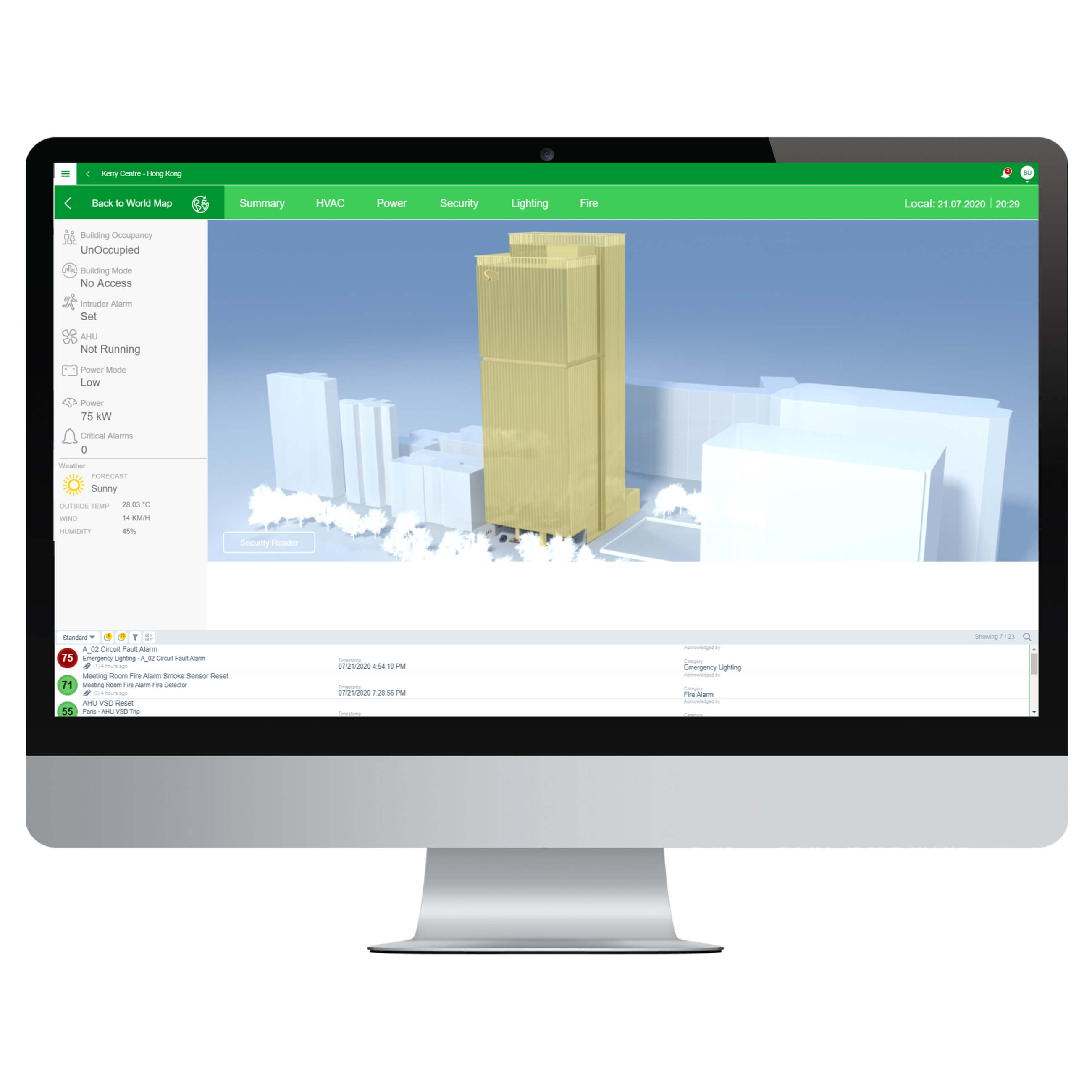

Enterprise Server- EcoStruxure Building Operation

EcoStruxure Building is the open innovation platform of buildings – a collaborative IoT solution that is scalable, secure and global to create smart and future-ready buildings. It ensures customers’ smart buildings are even more connected, hyper-efficient, truly sustainable, and always simple.

EcoStruxure Building Operation seamlessly facilitates the secure exchange of data from both Schneider Electric and third-party energy, lighting, HVAC, fire safety, security, and workplace management systems while leveraging digitization and big data.

Our IP-enabled software (and hardware) address the entire building ecosystem with easy integration of devices, other building systems, and cloud services, delivering the performance and data-throughput needed for small buildings to large, complex multi-site enterprises.

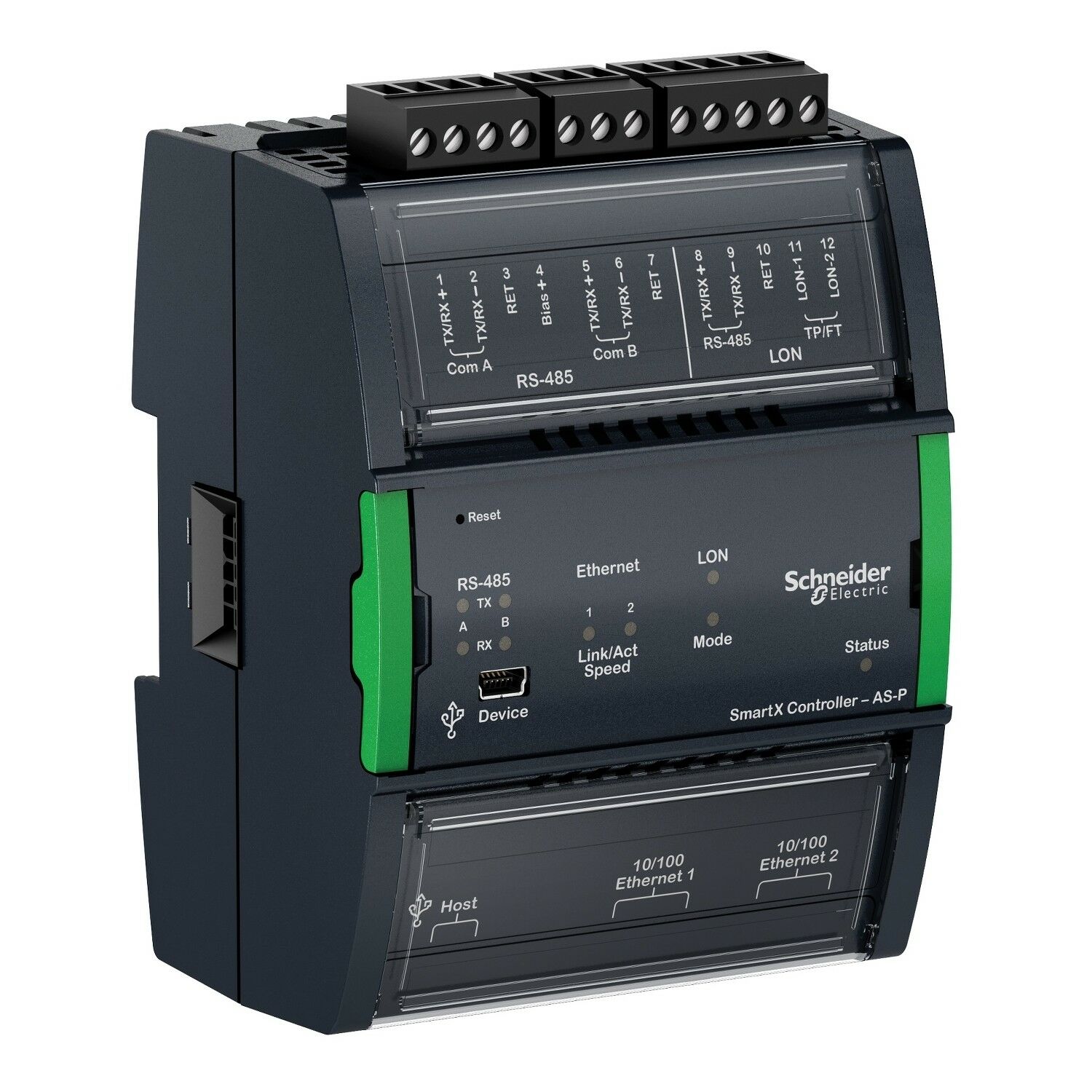

SmartX AS-P Server

At the core of an EcoStruxure BMS is a SmartX server, such as the SmartX AS-P server. The SmartX AS-P server performs key functionality, such as control logic, trend logging, and alarm supervision, and supports communication and connectivity to the I/O and field buses. The distributed intelligence of the EcoStruxure BMS ensures fault tolerance in the system and provides a fully featured user interface through WorkStation and WebStation.

SmartX AS-P Server

Download Catalogue

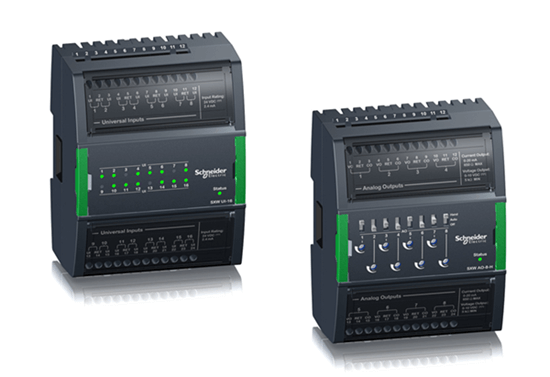

Automation Server I/O Module Family

The Automation Server includes support for a broad spectrum of I/O modules that can be combined to meet the unique requirements of each installation. An Automation Server can have a maximum of 32 modules, including one Automation Server and a mixture of Power Supply modules and I/O modules.

Automation Server I/O Module Family

Download Catalogue

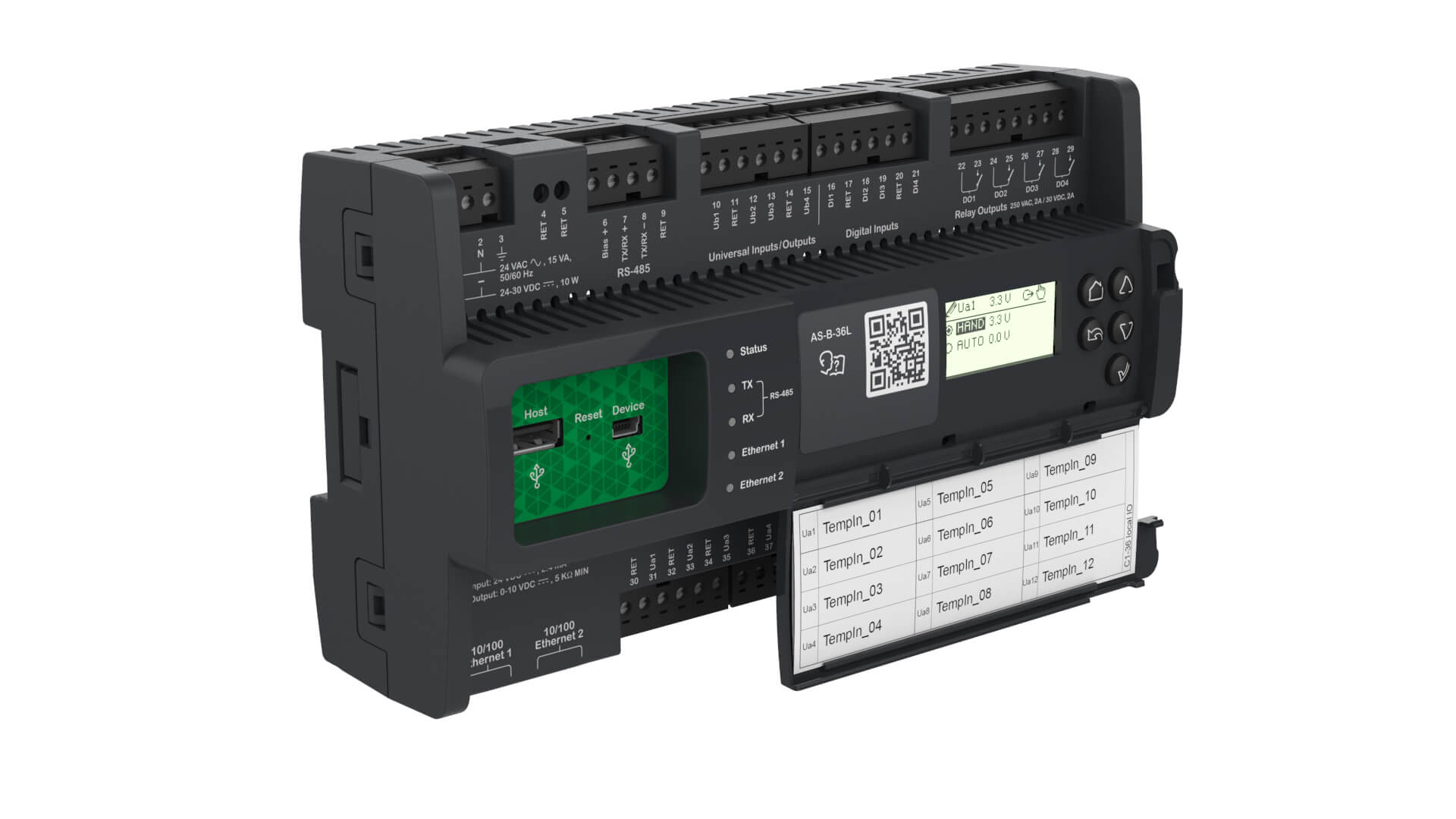

SmartX AS-B Server

At the core of an EcoStruxure BMS is a SmartX server, such as the SmartX AS-B server. The SmartX AS-B server performs key functionality, such as control logic, trend logging, and alarm supervision, provides built-in I/O, and supports communication and connectivity to the field buses. The distributed intelligence of the EcoStruxure BMS ensures fault tolerance in the system and provides a fully featured user interface through WorkStation and WebStation.

SmartX AS-B Server

Download Catalogue

MP-C SmartX IP Controller

SmartX IP Controller – MP-C is a multi-purpose, fully programmable, IP based field controller. The MP-C models offer a flexible mix of I/O point types that suit a wide range of HVAC applications. MP-C can either be used as a standalone BACnet/IP field controller or as part of an EcoStruxure BMS with a SmartX AS-P or ASB server or an Enterprise Server as the parent server. The MP-C models support an optional display that provides insight and control of the inputs and outputs.

MP-C SmartX IP Controller

Download Catalogue

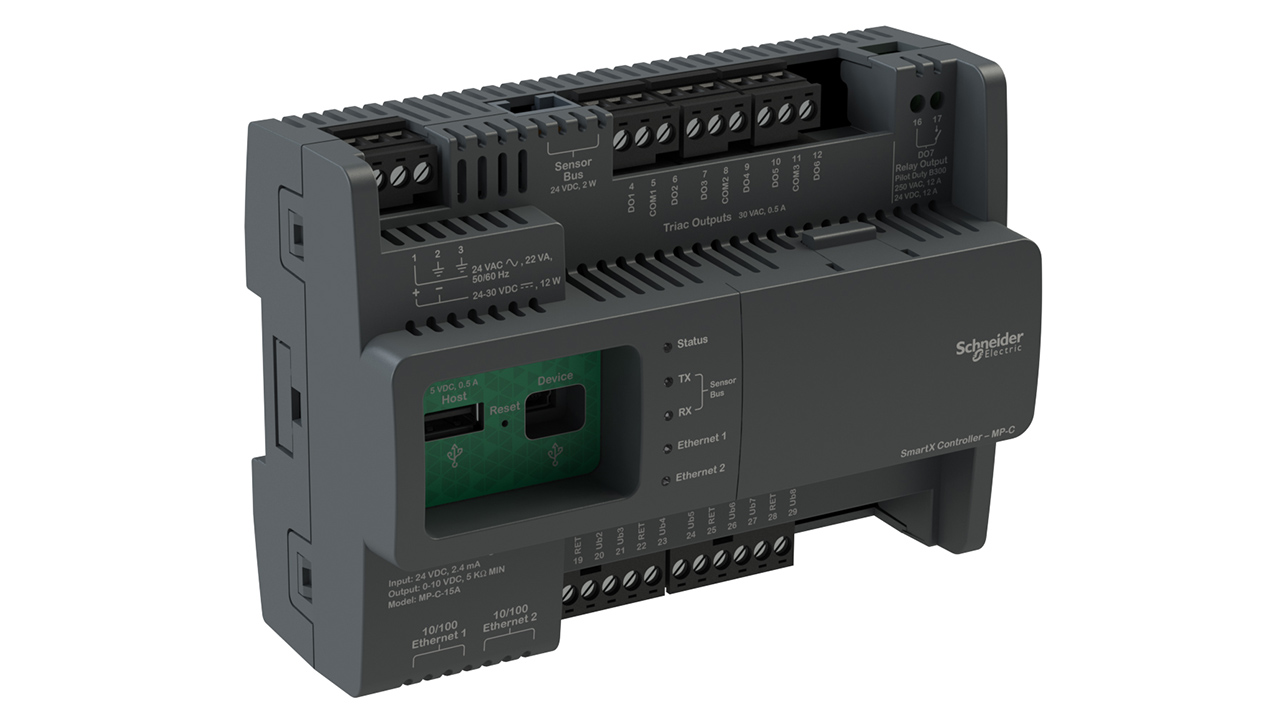

RP-C SmartX IP Controller

SmartX IP Controller – RP-C is a room-purpose, fully programmable, IP based field controller that suits a wide range of HVAC applications. The RP-C can either be used as a standalone BACnet/IP field controller or as part of an EcoStruxure BMS with a SmartX AS-P or AS-B server or an Enterprise Server as the parent server. The RP-C features a wireless chip that allows the mobile commissioning application to connect directly to the controller.

RP-C SmartX IP Controller

Download Catalogue

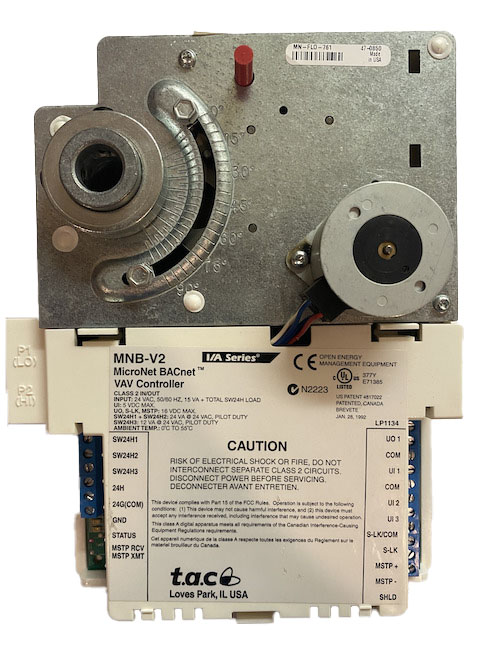

MicroNet BACnet VAV Controllers

The TAC I/A Series™ MicroNet™ BACnet™ VAV (Variable Air Volume) Controllers are interoperable controllers with native BACnet MS/TP communications support. All models incorporate: an integral actuator with manual override; an integral, patented, pressure transducer; three universal inputs; Sensor Link (S-Link) support; LED status indication; and over-the-shaft damper mounting.

MicroNet BACnet VAV Controllers
