UVGI Systems

UVGI is a disinfection method that uses UV-C light to eliminate or inactivate micro-organisams, such as bacteria, viruses, moulds and other pathogens. UV-C is a type of ultraviolet at wavelength of 280 – 200 nanometre, which is the most effective wavelengths for germicidal control. It can be used to prevent the spread of certain infectious diseases.

Benefits of Ultraviolet Germicidal Irradiation (UVGI)

  • Kills or inactivates micro-organisms
  • Improve Indoor Air Quality (IAQ)
  • Versatile designs to suit your air-conditioning equipment (Ducted FCU & AHU)

UV-C LED UVGI System for Duct Type Fan Coil

Room air is cirulated and disinfected through the air sterilisation system using built-in UV-C LED in the ducted fan coil. UV-C LEDs are installed in a specific angle to ensure optimal air treatment. They are specially designed with enhancing reflector for more concentrated UV-C Light achieving better disinfection effect.

Suitable for small and medium space applications.

BENEFITS

  • Eliminate viruses and bacteria
  • Achieve concentrated UV-C light
  • Achieve advanced germicidal efficiency
  • Fast set-up time
  • Easy maintenance
  • Compact size
  • Comply with European Union’s Directive 2002/95/EC
  • Interlock with fan coil unit

UV-C LAMP UVGI System for AHU

In an Air Handling Unit (AHU) air chamber space, UV-C lamps can provide greater intensity output and higher disinfection effect. UV-C lamps are installed in AHU for coil sterilisation and surface disinfection. They target and irradiate the cooling coil and condensate drain pan.

Suitable for large space applications.

BENEFITS

  • Effectively reduce mould, bacteria and viruses
  • 360 degrees irradiation sterilisation
  • Great UV light sterilisation
  • Maintain cooling coil cleanliness and heat transfer efficiency
  • Reduce cooling coil maintenance frequency
  • Interlock with AHU

Applications

  • Hospitals & Healthcare Industry
  • Hotels & Hospitality Industry
  • Food & Pharmaceutical Industry
  • Educational Institutions
  • Malls & Cinemas
  • Fitness Centre
  • Commercial Office

Specifications

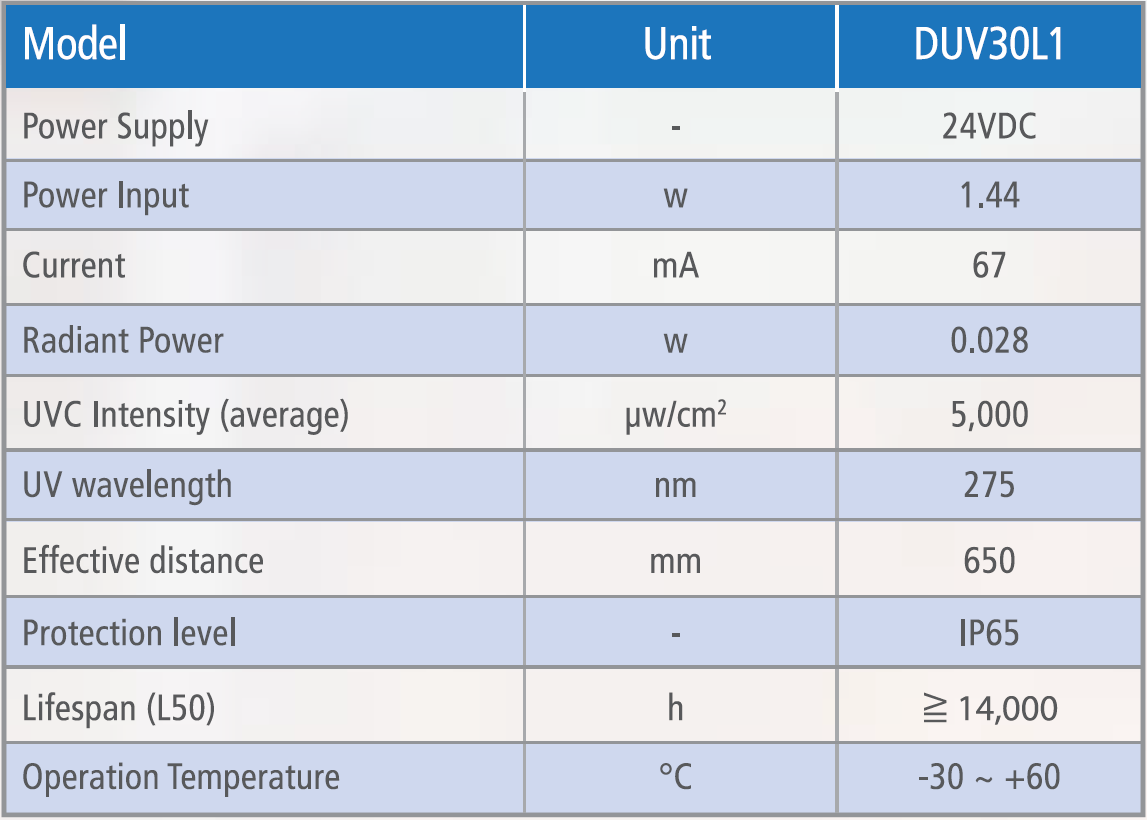

LED Specifications

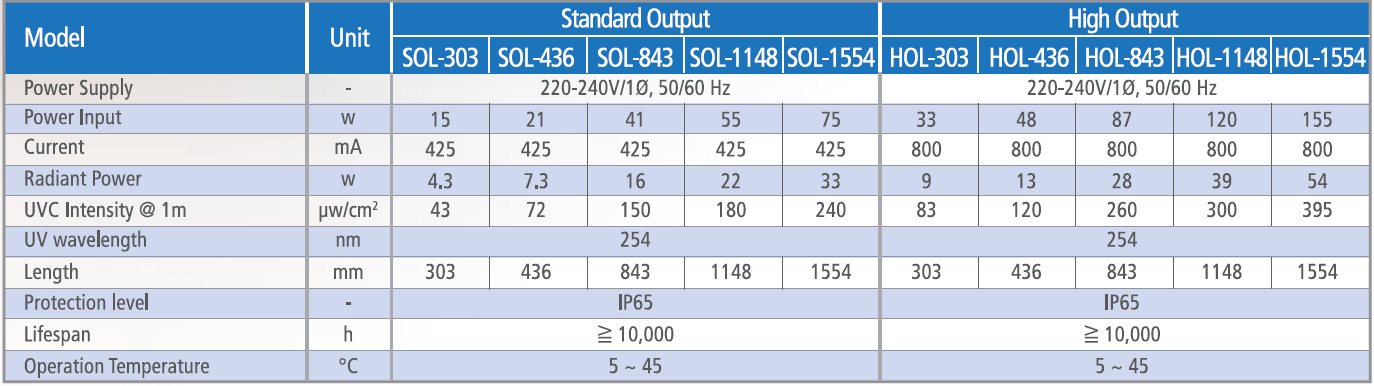

Lamp Specifications
