Modular Chiller Plant
-
Modular Chiller Plant
Introduction
Daikin Modular Chiller Plant delivers high performance with all the benefits of pre-fabrication. The Modular Chiller Plant perfectly combined the most advanced technology with oil free magnetic bearing water cooled chillers, pumps with VSD and controls to provide excellent performance.
Features
Daikin has designed the plug and play Modular Chiller Plant that is perfectly combined with advanced technology with oil free magnetic bearing water cooled chillers, pumps with VSD and controls to deliver high performance.
Easy installation where connected with power, chilled water and condenser water pipes, the system is ready for operation
Compact design as parts are pre-assembled in the container
Excellent efficiency and reliability are achieved where magnetic bearing chiller is used. The frictionless oil free compressors eliminate oil contamination.
Designed with high level interfacing, this modular chiller plant allows control and monitoring of chiller pumps, motorized valve and other accessories
With refrigerant and water leak detectors, exhaust fan and alarm monitoring, safety is ensured
Each modular chiller plant is customizable to suit your building needs

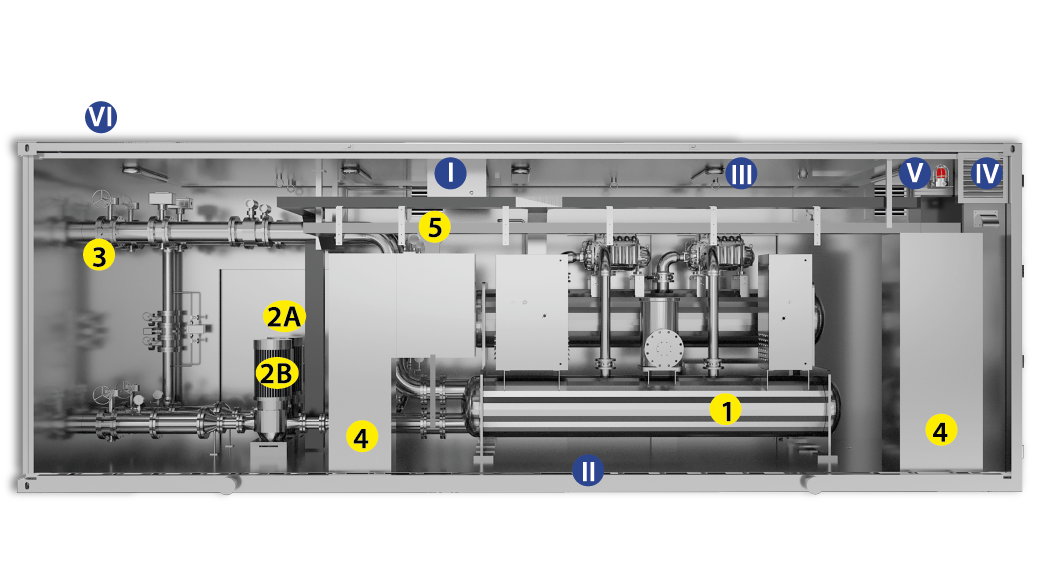

Functional Components
1. Magnetic Bearing Chiller
2A. Chilled Water Pump with VSD
2B. Condenser Water Pump with VSD
3. Piping for Condenser and Chilled Water
4. Switch Board
5. Control, Power Cables and LED Lightings
Safety Components
i. Fan Coil
ii. Water and Leak Detector
iii. Smoke Detector
iv. Exhaust Fan
v. Alarm Light
vi. Soundproof and Weatherproof Enclosure
Specifications

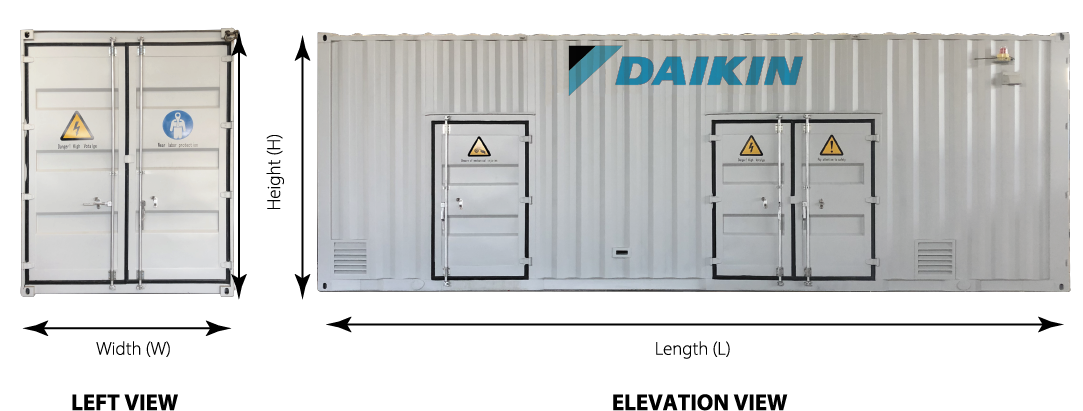

| Cooling Capacity | Dimension (L*W*H) | Shipping Weight | Operation Weight | ||
|---|---|---|---|---|---|
| Packaged Chiller with Pumps | ton | kW | mm | kg | kg |
| 250 | 879.2 | 9500 x 2600 x 3300 | 13800 | 15700 | |
| 400 | 1407 | 10500 x 2800 x 3500 | 17673 | 19663 | |
