VRV S (4-6HP)

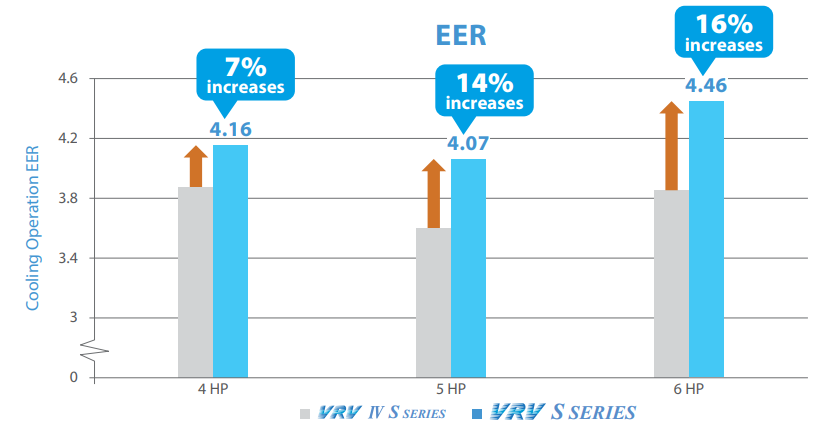

Higher energy efficiency

• VRV S (4-6HP) offers better energy efficiency in comparison to VRV IV S series

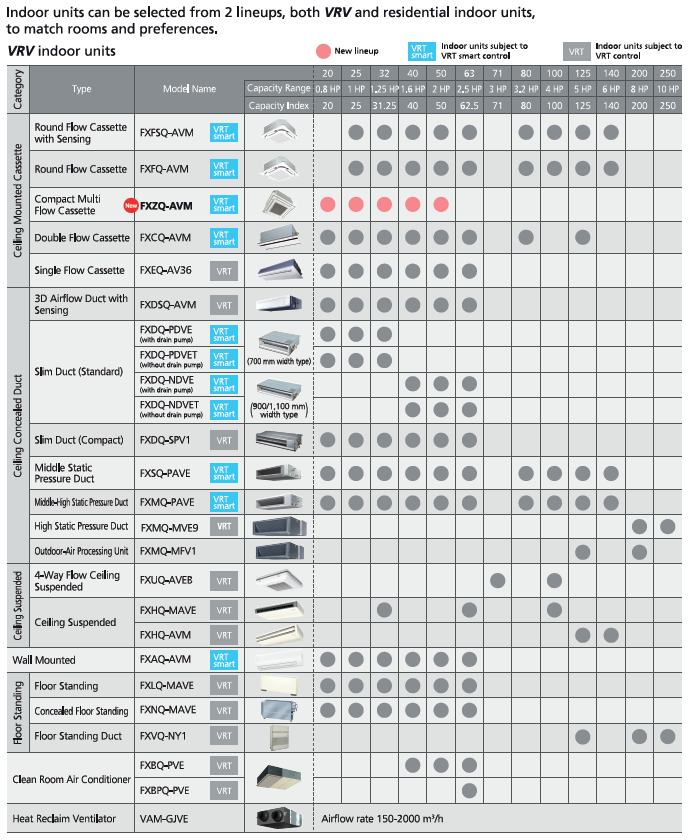

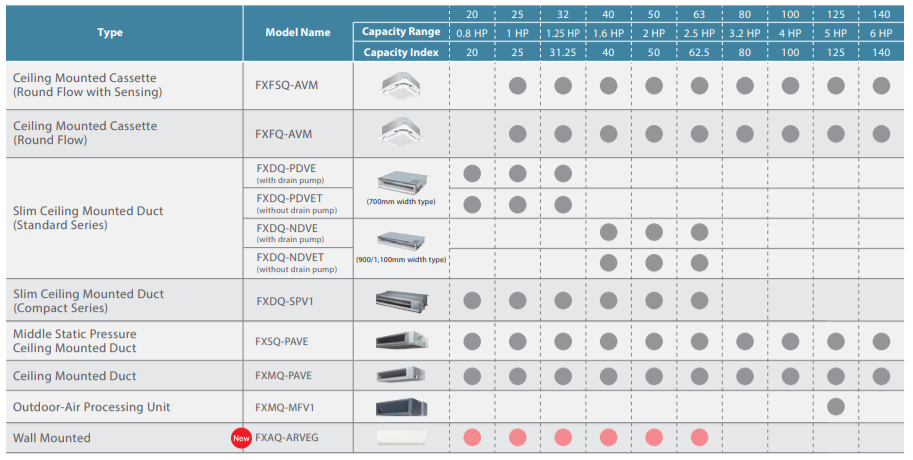

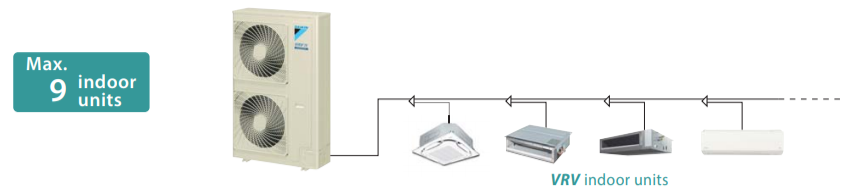

Connectable up to 9 indoor units

• Up to 9 indoor units can be connected to a single outdoor unit. This makes VRV S series a versatile system.

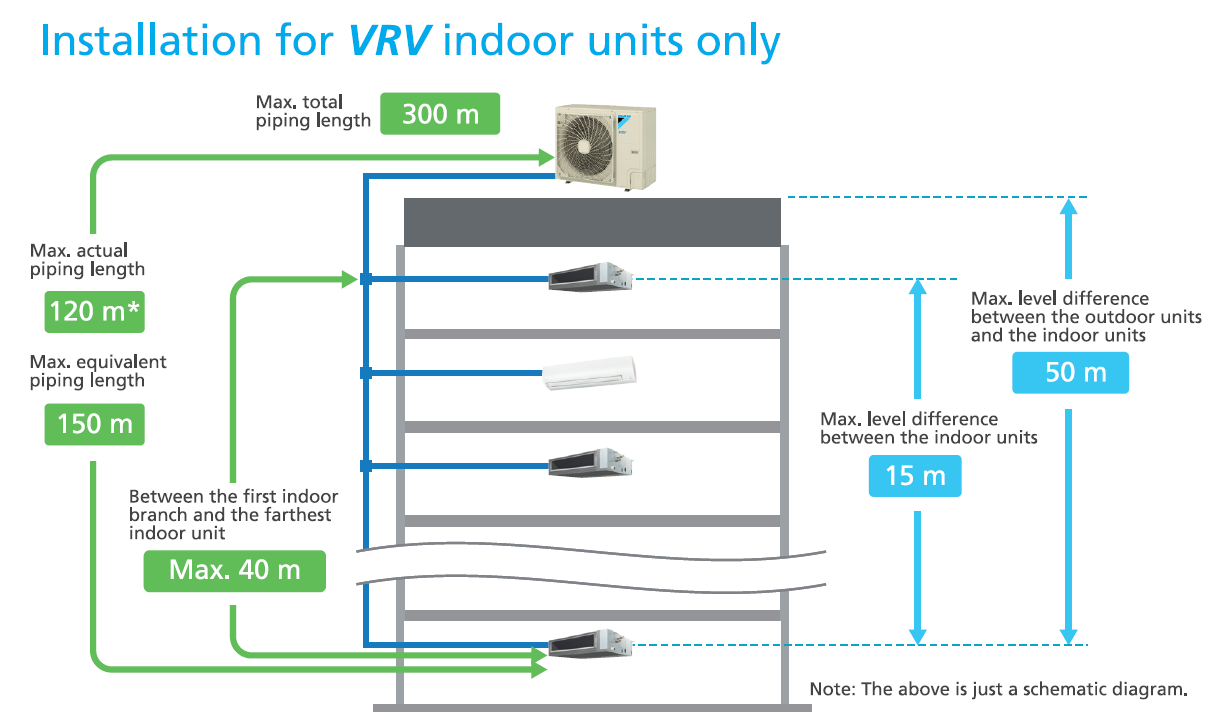

Long piping design

• Actual piping length: Max 120m
• Total piping length: Max 300m

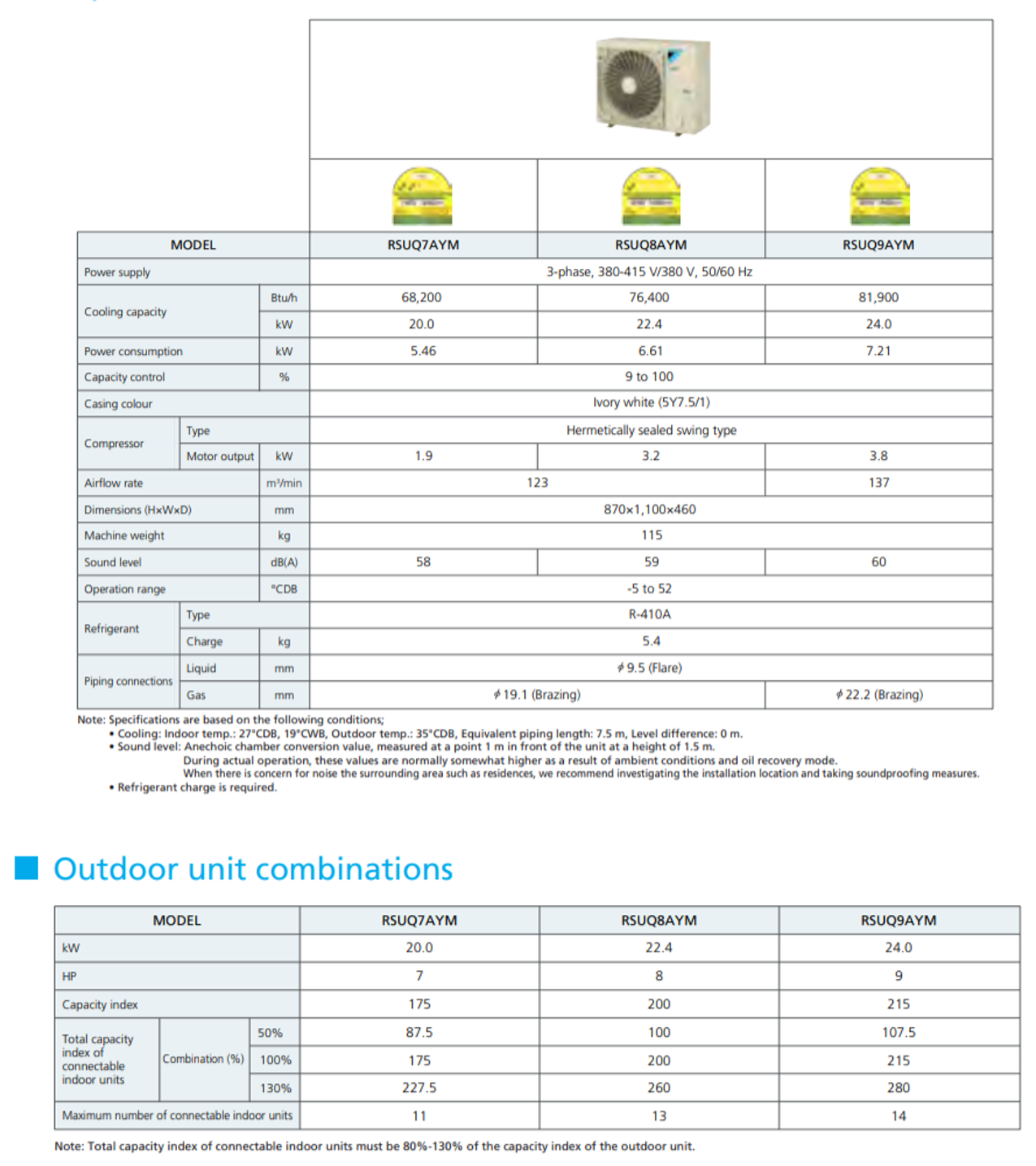

VRV S (7-9HP)

Energy saving and comfort

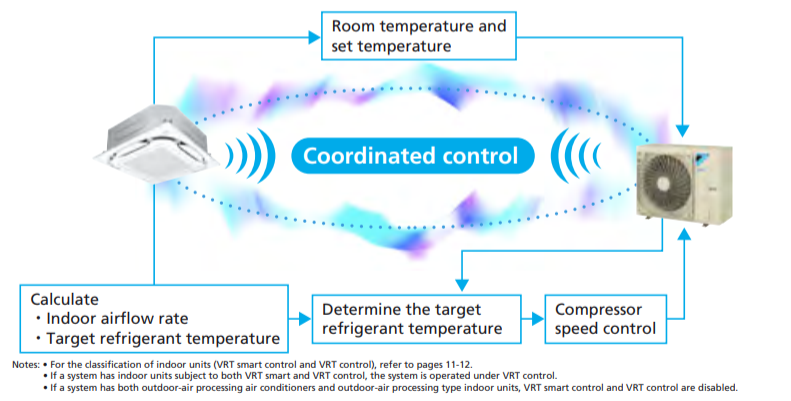

• VRT Smart Control
  • This control coordinates between the indoor and outdoor units to minimize the energy consumption. It is done by optimizing capacity to meet actual operation load.

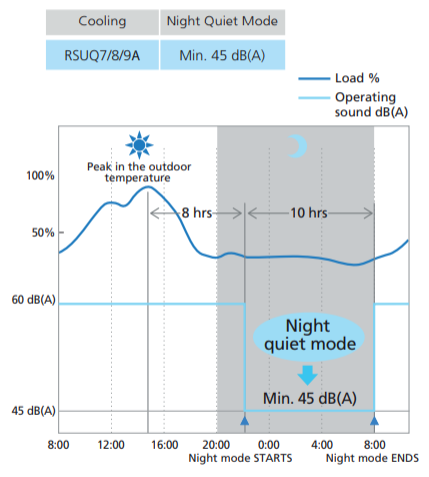

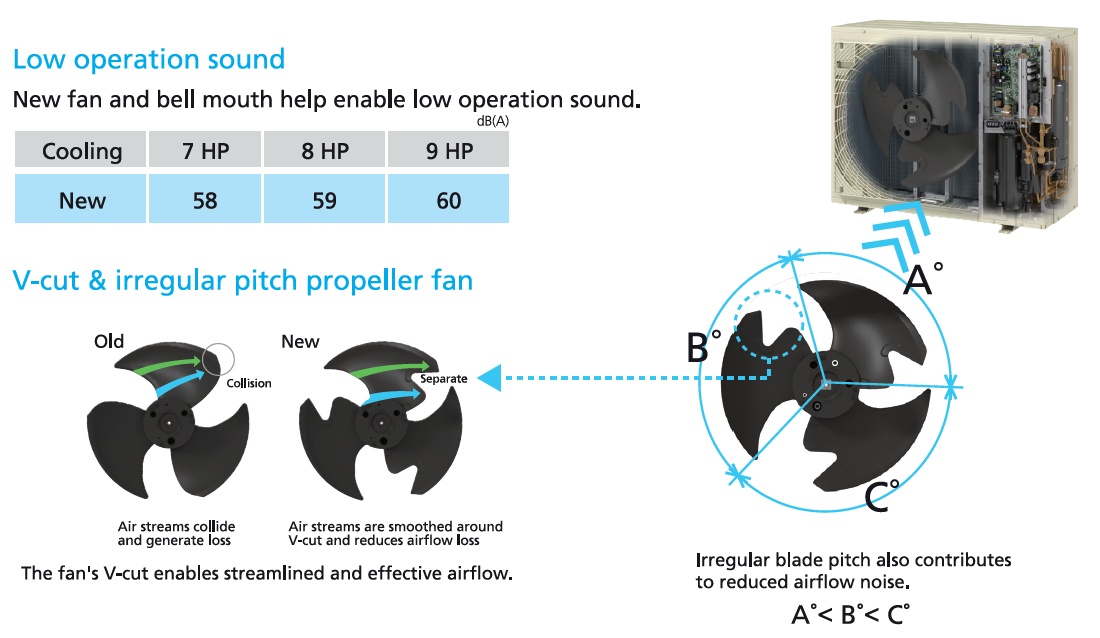

• Quiet Operation
  • With the new fan and bell mouth to lower operation sound and nighttime quiet operation function, this will maintain a quiet environment in the neighborhood

High performance and reliability

• Newly extended operation range of up to 52 degrees Celsius.
  • Enables reliable operation with high temperature condition, where there is now a wider choice of installation location.

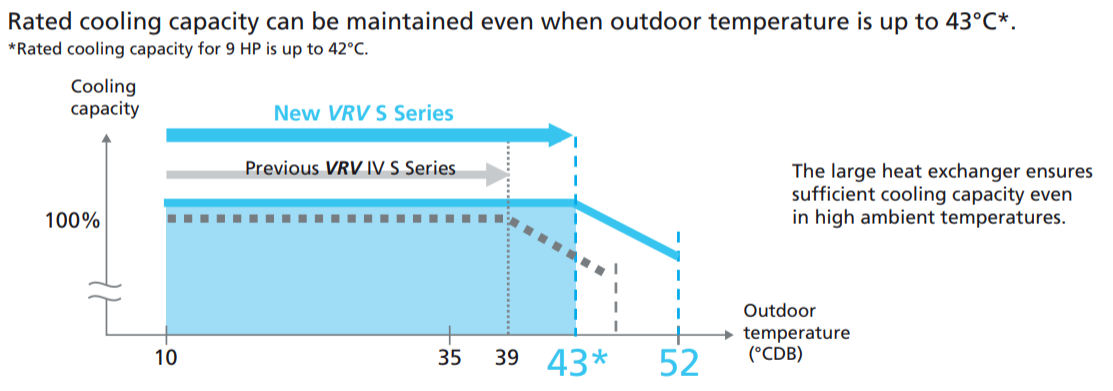

• Keep rated cooling capacity in high outdoor temperature up to 43 degrees Celcius

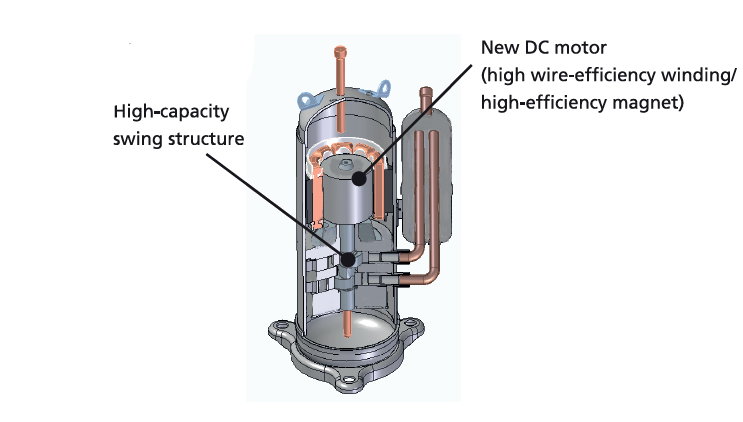

• New efficiency, high capacity DC inverter swing compressor
  • The new compressors and DC motor designed with small diameter bearing improve overall performance.

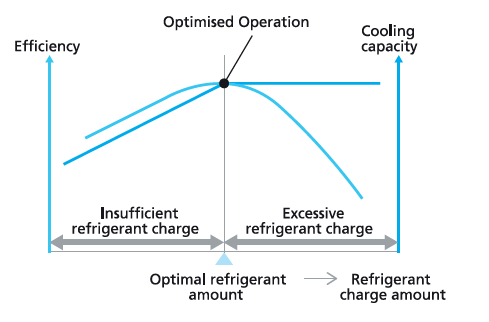

• Automatic refrigerant charge function
  • Optimized operation efficiency that prevents capacity shortage

• Higher quality and easier installation
  • The automatic refrigerant charge automates the charging process of the refrigerant with one simple button.



Design flexibility of installation

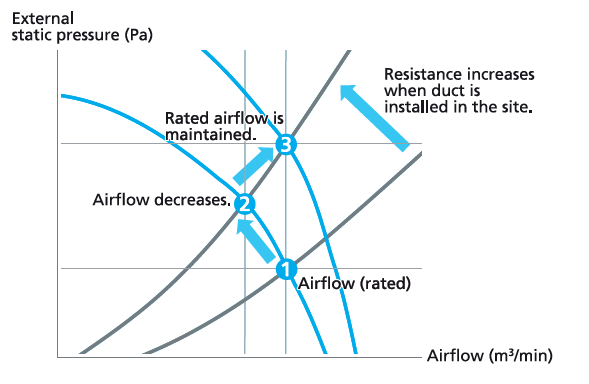

• High external static pressure up to 40 Pa and automatic adjustment external static pressure

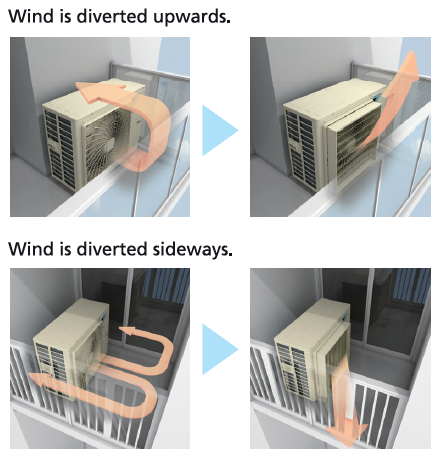

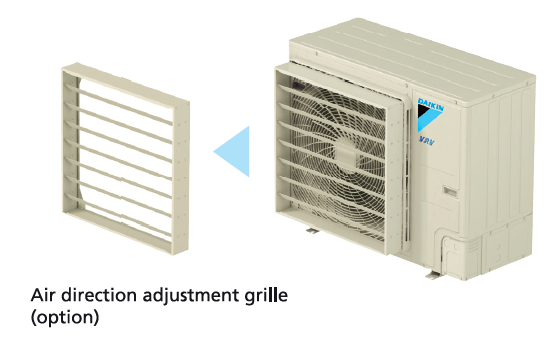

• Optimal airflow direction with the optional air direction adjustment grille

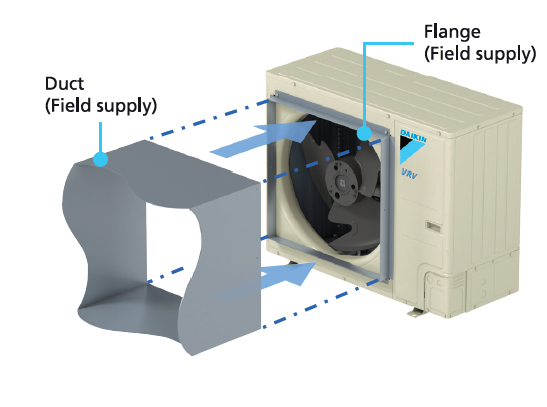

• Duct installation to stabilize the system
  • Installation a field-supplied duct allows the air to bypass an obstacle. For example, the installation of the outdoor unit is possible in places behind an advertising board.

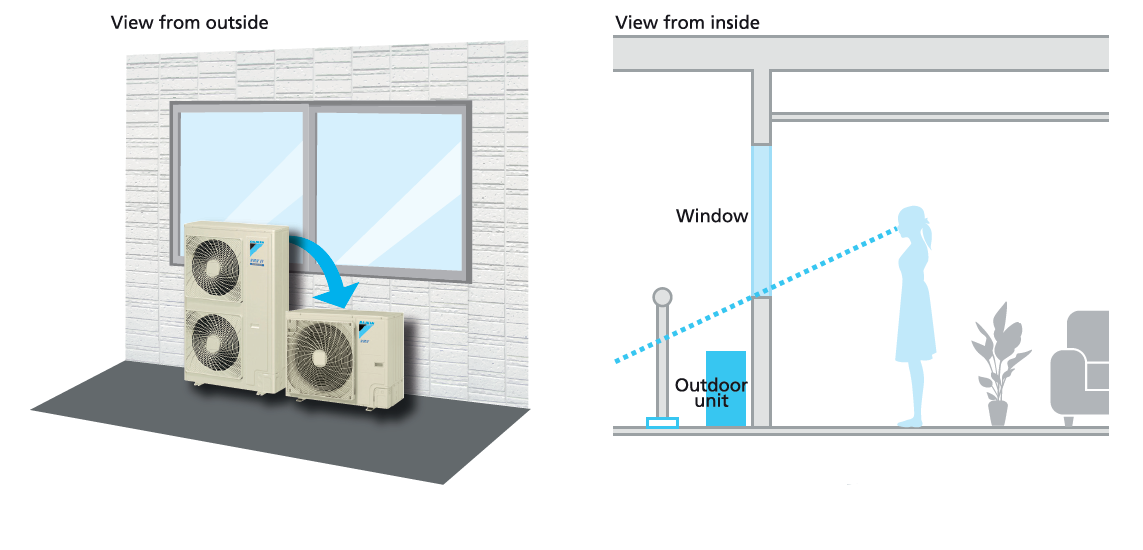

• Low height casing design
  • This is the ideal solution which minimizes both visual and sound impact, especially for premises with no space for multiple outdoor units.

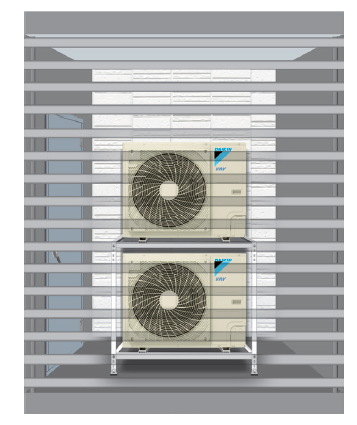

• Double-stacking installation made possible

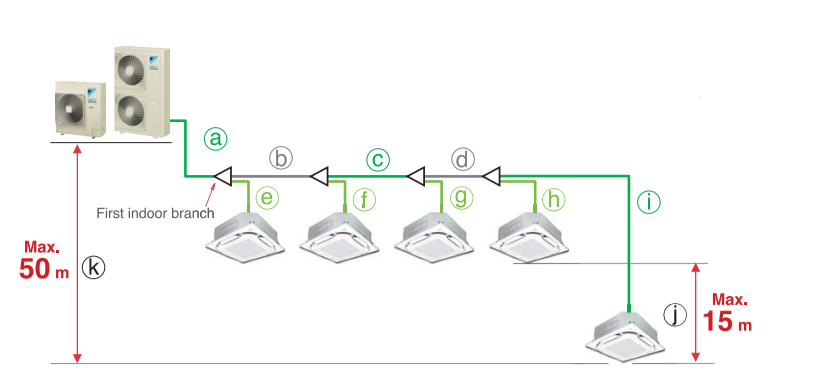

• Increase in actual piping length of up to 120m

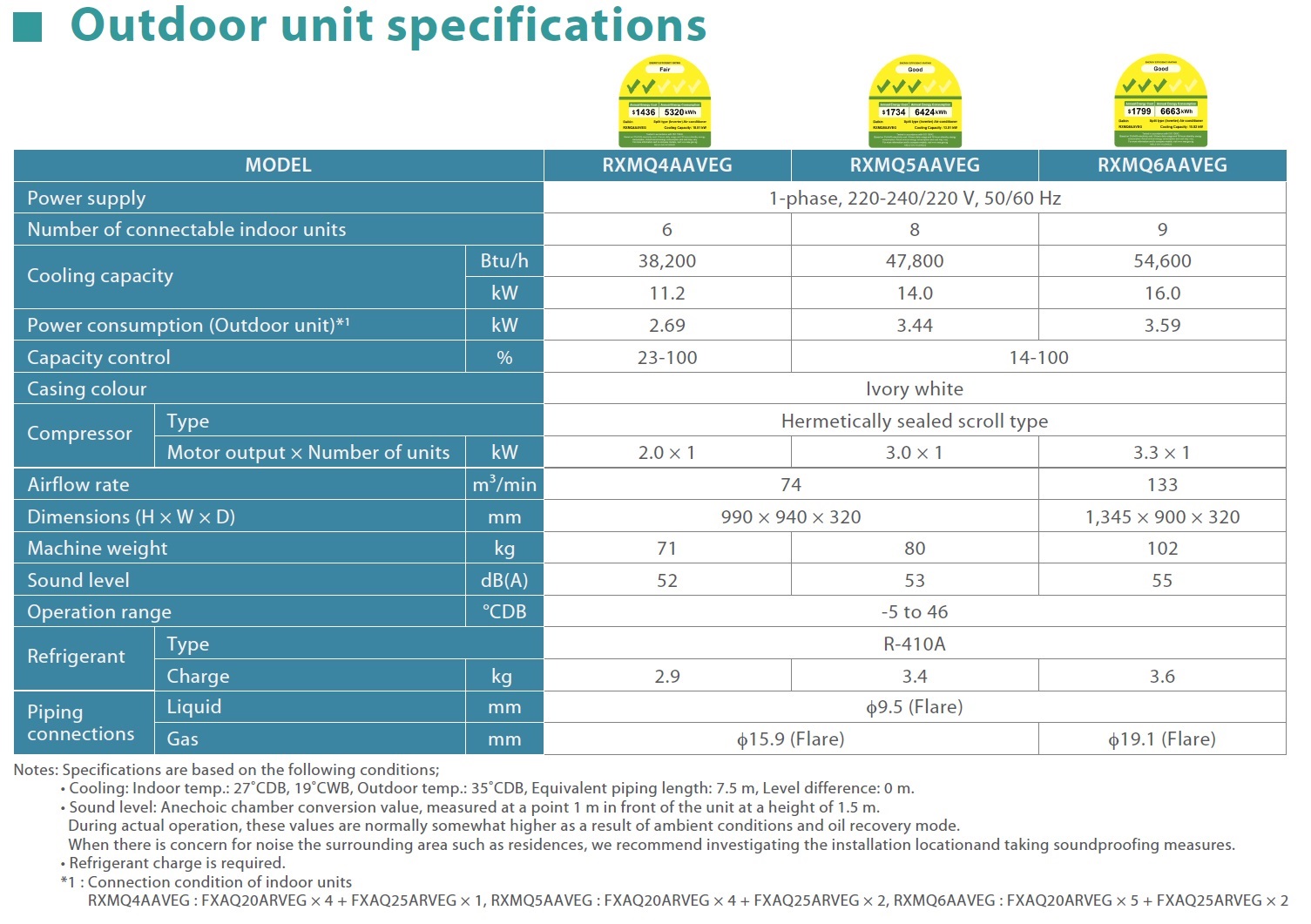

VRV S (4-6HP)

VRV S (7-9HP)
