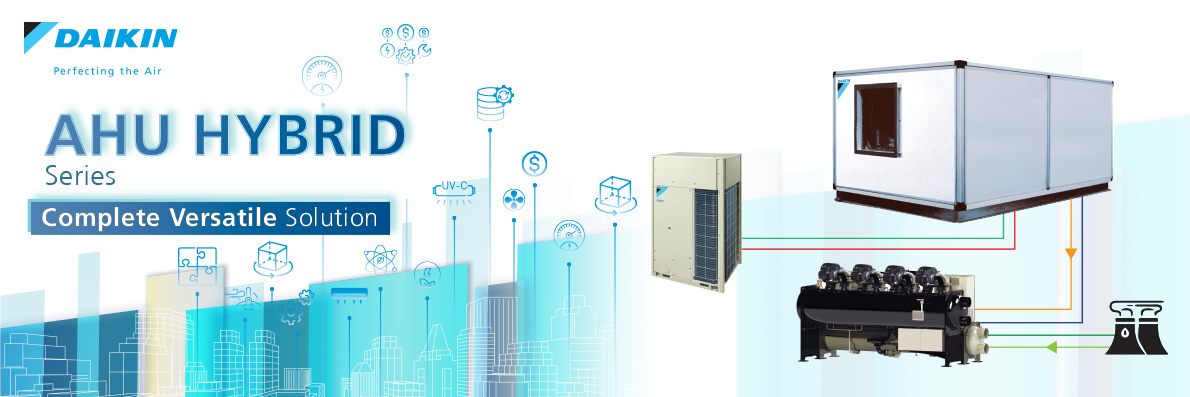

Introduction
Daikin offers a complete versatile solution with our AHU Hybrid Series. AHU Hybrid series is eco-friendly. It is designed to achieve cost effectiveness through its scheduled operation by switching to DX system during off peak hour or as a standby unit in situations of breakdown.
Hybrid AHU series has built-in control system for hassle free installation and high-level interfacing with Building Management System (BMS).
Features
-
High System Efficiency
-
Flexibility in Design
-
Space Saving
-
Cost Saving
Equipment, Installation, Operation, Maintenance
-
Back-up Operation
Scheduling and changeover, Maintenance back-up, Off-peak demand
-
Built-in UVC Light System
Improve Indoor Air Quality (IAQ) through eliminating bacteria, other allergens and destroying pathogens

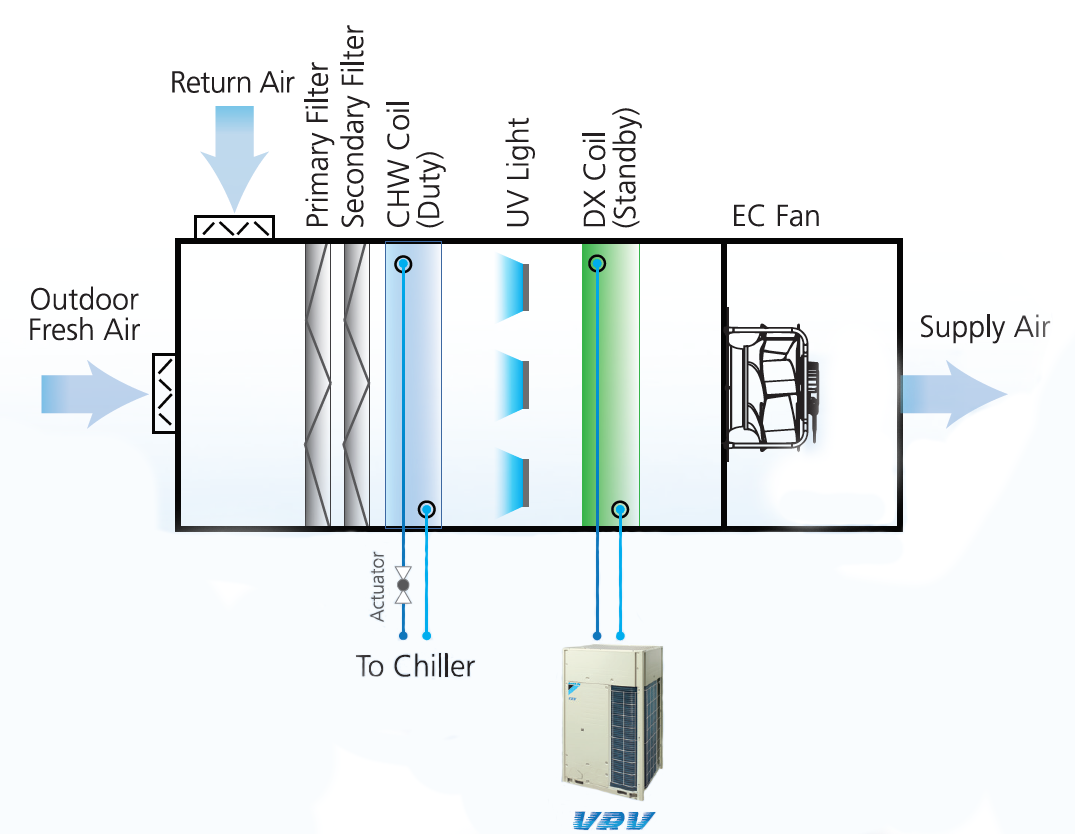

System Design
Applications
-
Offices
-

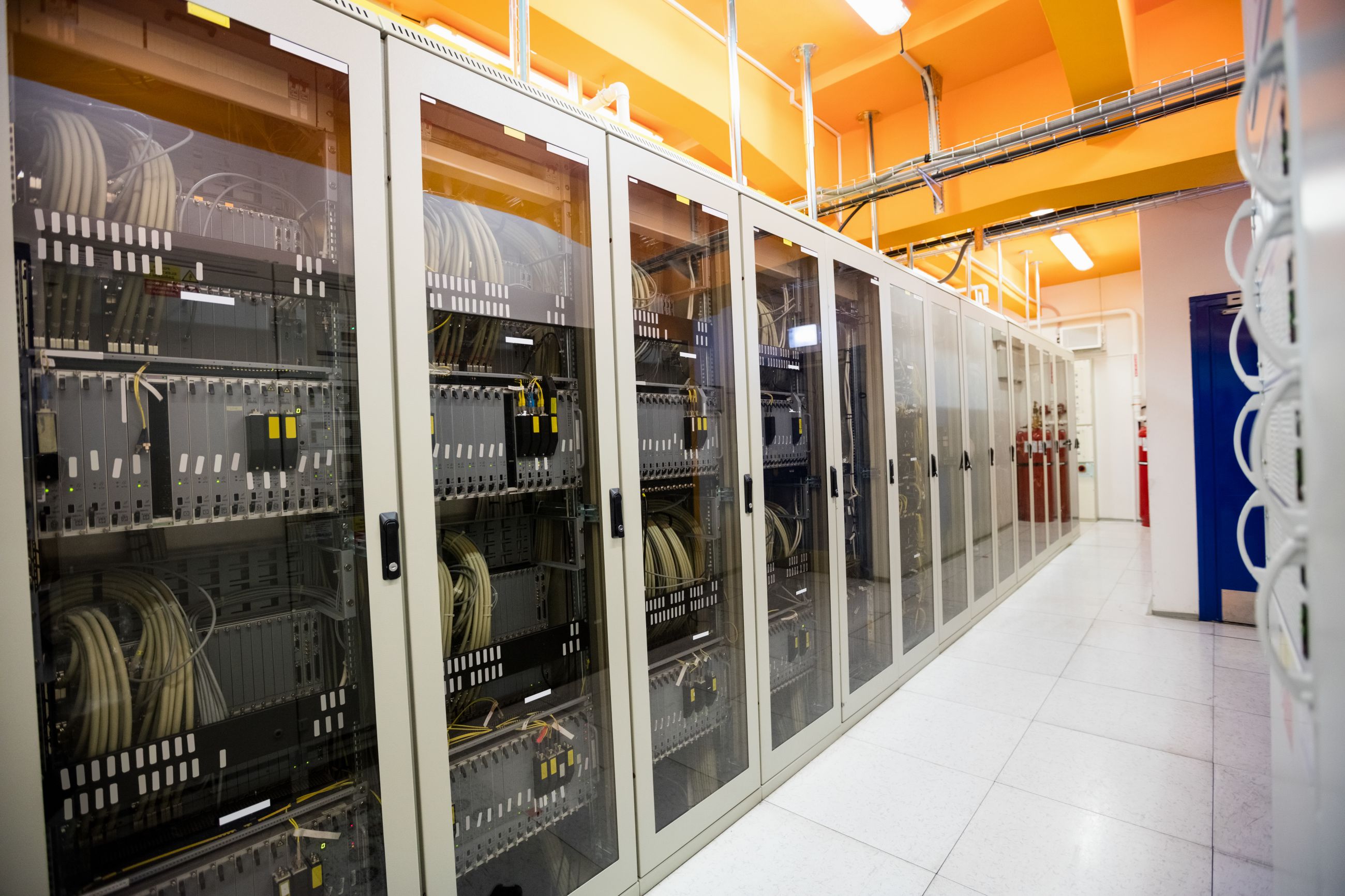

Office Server Rooms
-
Small Data Centre (Backup purpose)
-
Institutions
-
Industrial Premises

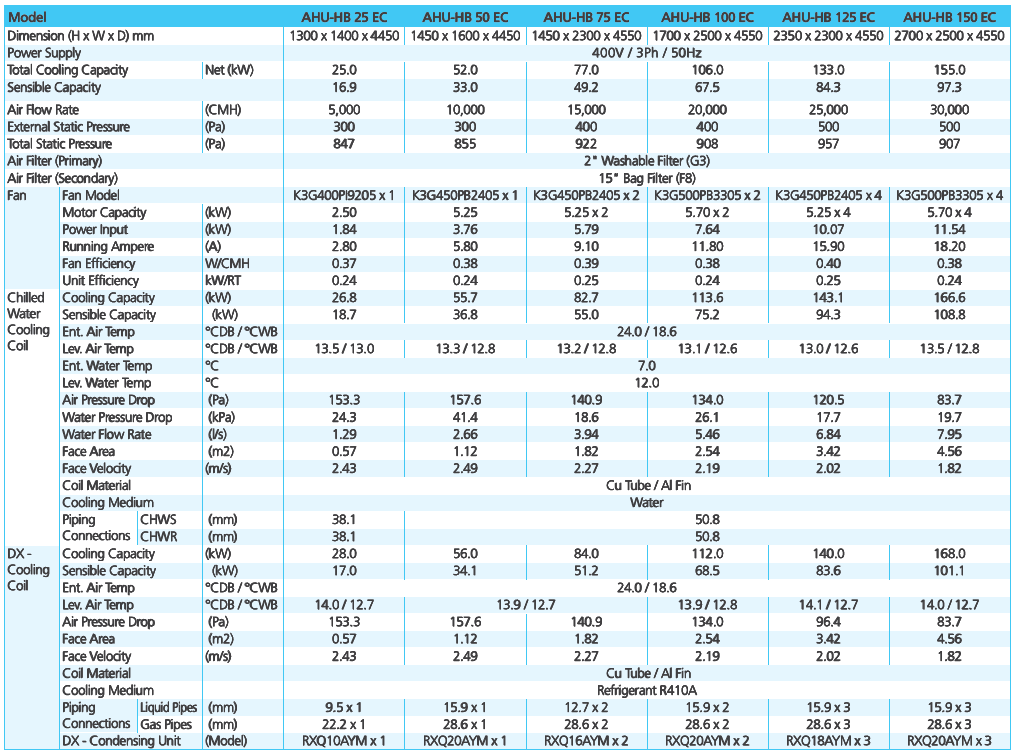

Specifications
- AHU Hybrid
-
Notes:
1) Cooling capacity based on nominal on-coil condition 24.0°CB/18.6°CWB, Chilled Water Temp (inlet/outlet): 7°C/12°C
2) Capacity are net, includes deduction of fan motor hear
3) Power input values are based on rated external static pressure
4) UV-light equipped as standard accessory
- AHU Hybrid Control
