The 6 Types of Daikin Chilled Water Fan Coil Units are capable of flexibly adapting to a wide variety of space requirements, installation configurations, and usage applications. Not only do the models feature designs that blend in beautifully with any interior décor, they also boast advantages such as space-saving compactness. These units are widely used for the air conditioning of offices, shops, and other areas.

• Space Saving
• Wide range to suit various interior designs.
• Installation of fan coil units in different zones and Independent Operation of units allows Zone Control to achieve energy saving and better air distribution and to meet different comfort requirements
• Coil with Hydrophilic Slit Fin improves air contact to boost the cooling capacity and resist corrosion
• Wireless remote controller operates the air conditioner unit within the distance of 9 meters

Ceiling Cassette Type

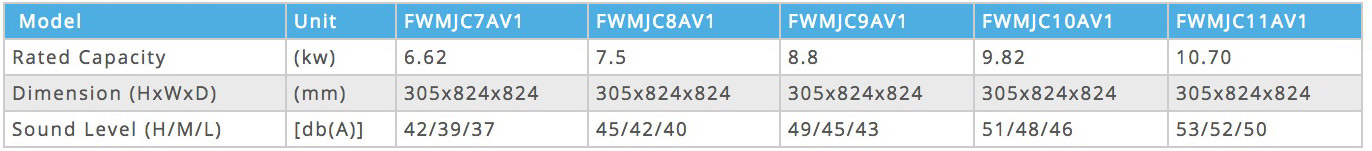

820mm x 820mm

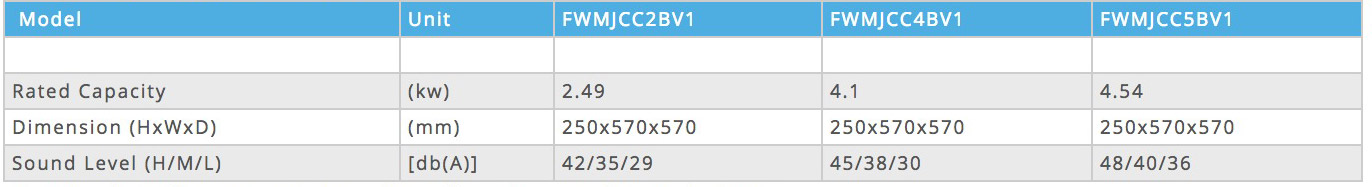

Compact (570mm x 570mm)

Nominal Cooling Capacity are based on the conditions below:
Cooling - entering air temp. : 27°C (80.6°F)DB / 19°C (66.2°F)WB, Entering water temp.: 7°C
(44.6°F), Leaving water temp.: 12°C (53.6°F)

Ceiling Concealed Type

Nominal Cooling Capacity are based on the conditions below:
Cooling - entering air temp. : 27°C (80.6°F)DB / 19°C (66.2°F)WB, Entering water temp.: 7°C
(44.6°F), Leaving water temp.: 12°C (53.6°F)

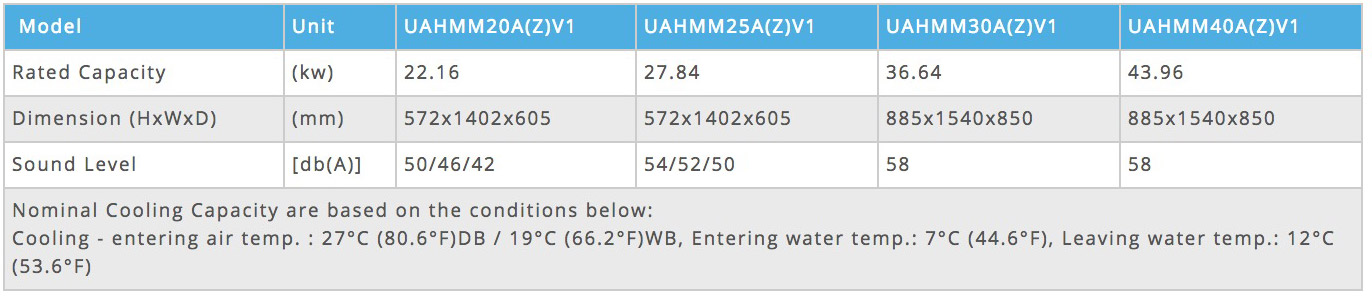

Ducted Blower Type

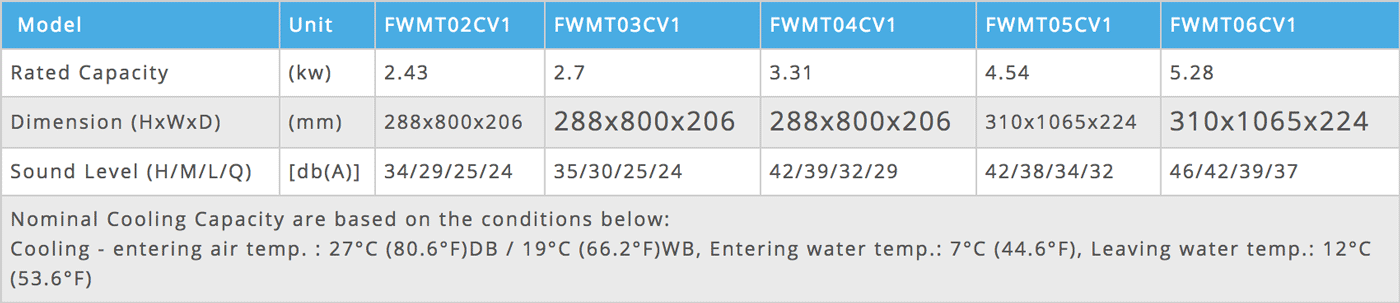

Wall Mounted Type
