- VRV IV S 5 ticks Series

Features

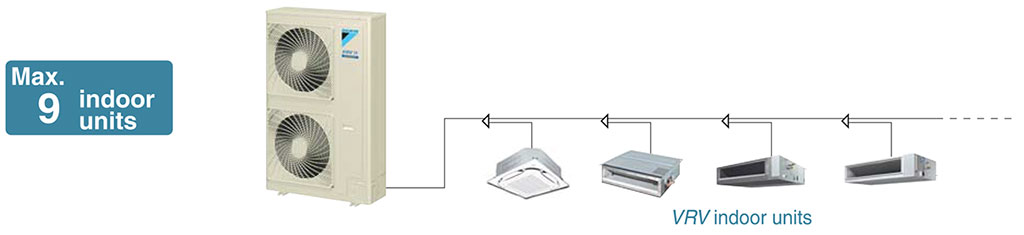

Connectable up to 9 indoor units
As many as 9 indoor units can be connected to a single outdoor unit, making the VRV IV S 5 ticks series a remarkably versatile system.
Note: Total capacity index of connectable indoor units must be 50-130% of the capacity index of the outdoor unit.
Conditions of VRV indoor unit maximum connection capacity
Makes the long piping design possible

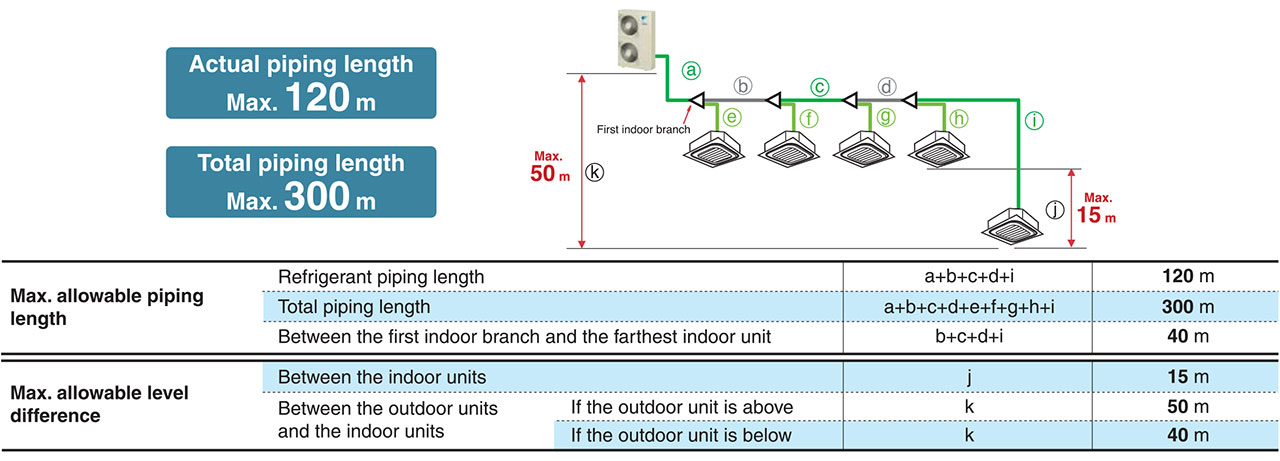

Piping length restriction (4-6HP)

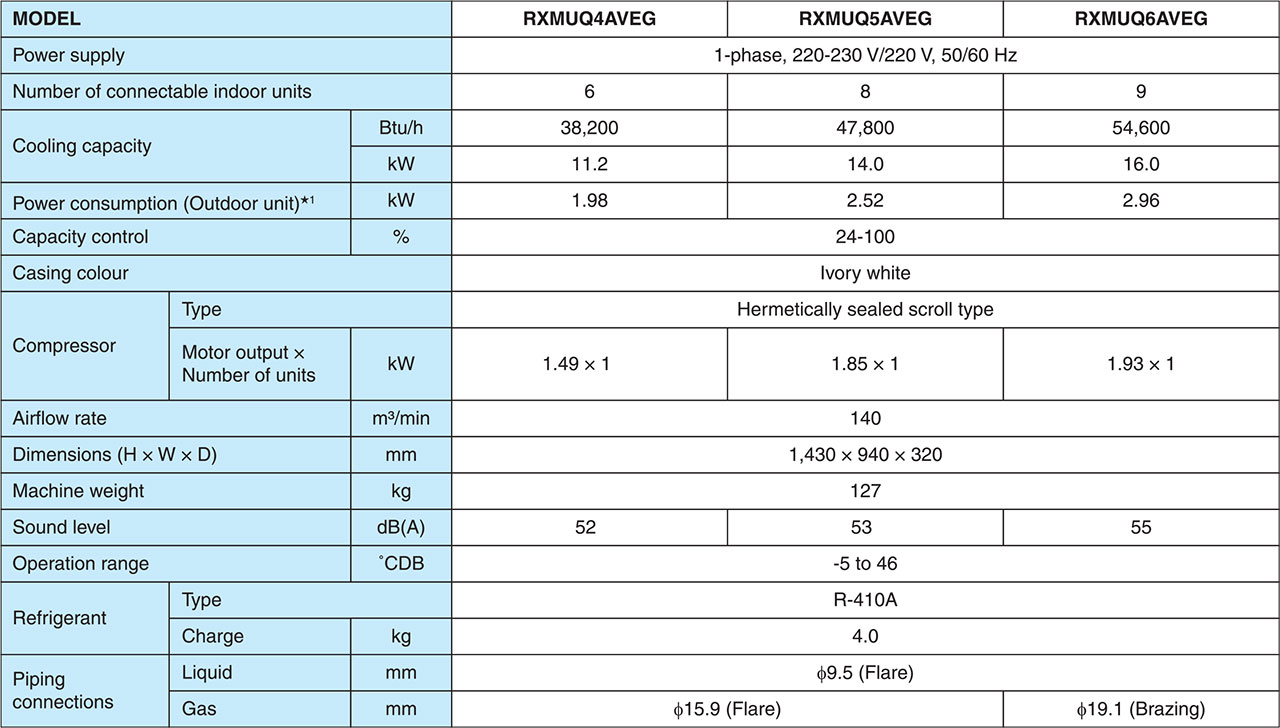

Specifications
Notes: Specifications are based on the following conditions;
- Cooling: Indoor temp.: 27 ̊CDB, 19 ̊CWB, Outdoor temp.: 35 ̊CDB, Equivalent piping length: 7.5 m, Level difference: 0 m.
- Sound level: Anechoic chamber conversion value, measured at a point 1 m in front of the unit at a height of 1.5 m. During actual operation, these values are normally somewhat higher as a result of ambient conditions and oil recovery mode. units When there is concern for noise the surrounding area such as residences, we recommend investigating the installation location and taking soundproofing measures.
- Refrigerant charge is required.
★1 : Connection condition of indoor units
RXMUQ4AVEG : FXFSQ25AVMG × 4
RXMUQ5AVEG : FXFSQ25AVMG × 5
RXMUQ6AVEG : FXFSQ25AVMG × 6

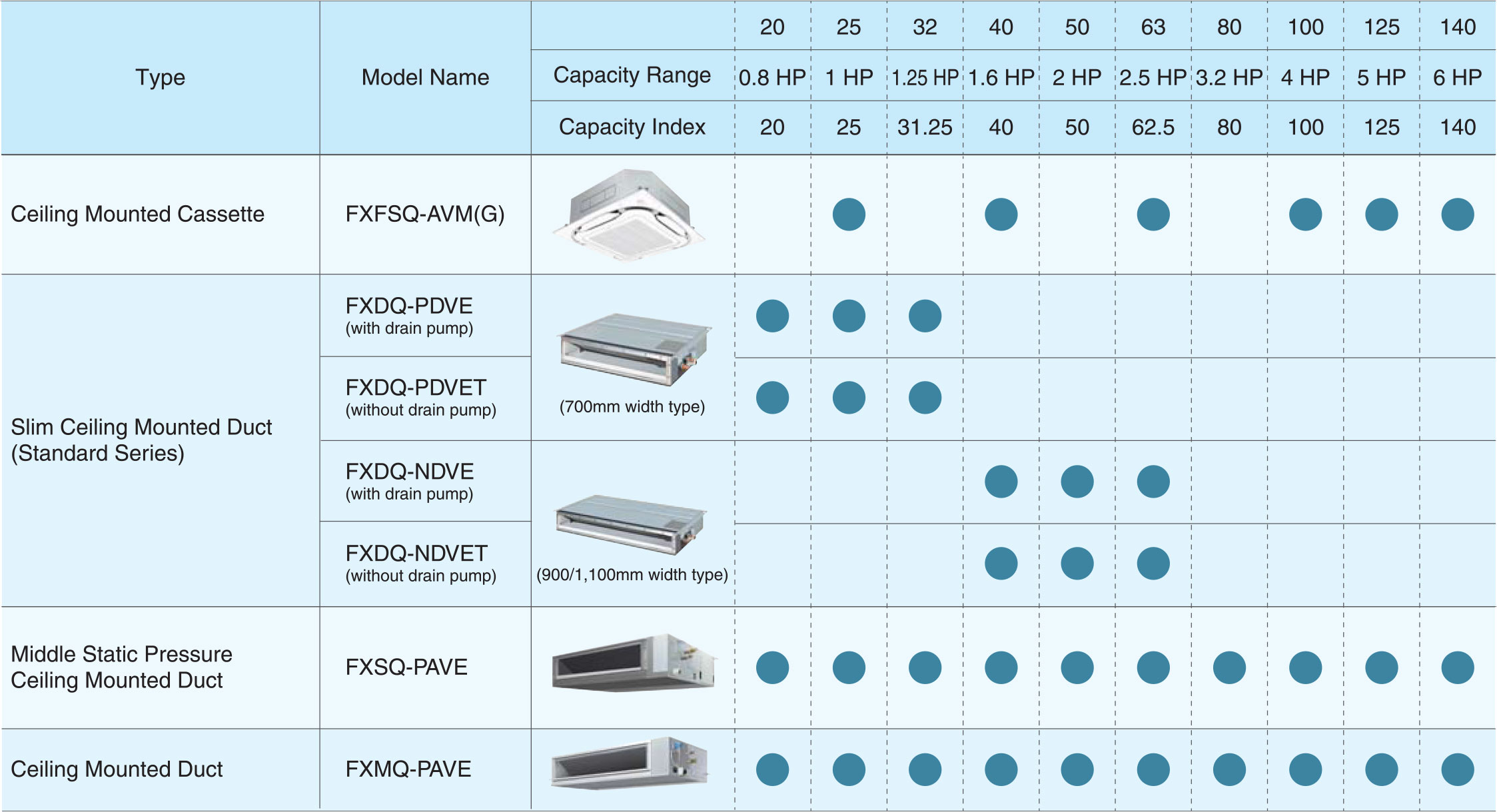

Indoor units lineup
Refer to each indoor unit’s specification table in page 3-6.

Ceiling Mounted Cassette TypeFXFSQ-A

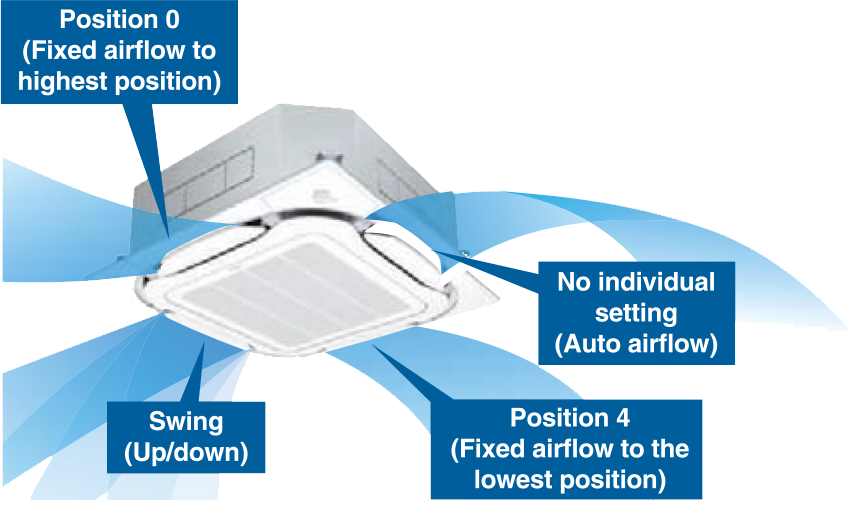

Individual Airflow Direction Control*
Comfortable air conditioning for all room layouts and conditions
Airflow direction can be individually adjusted for each air discharge outlet to deliver optimal air distribution.
*Applicable when wired remote controller BRC1E63 is used.

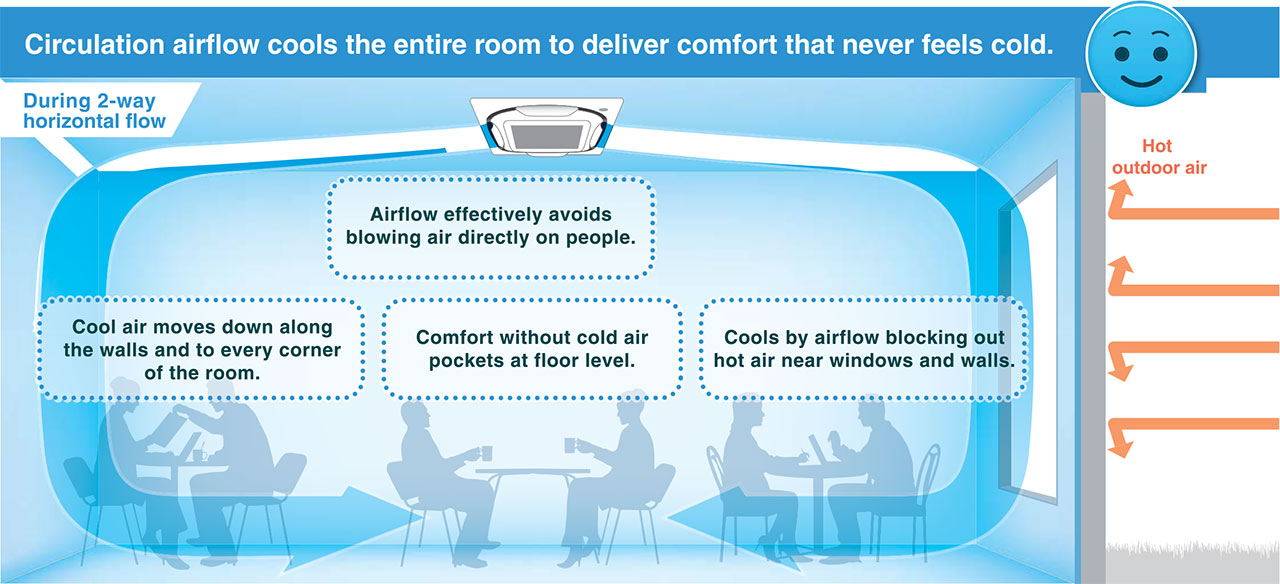

Circulation Airflow*

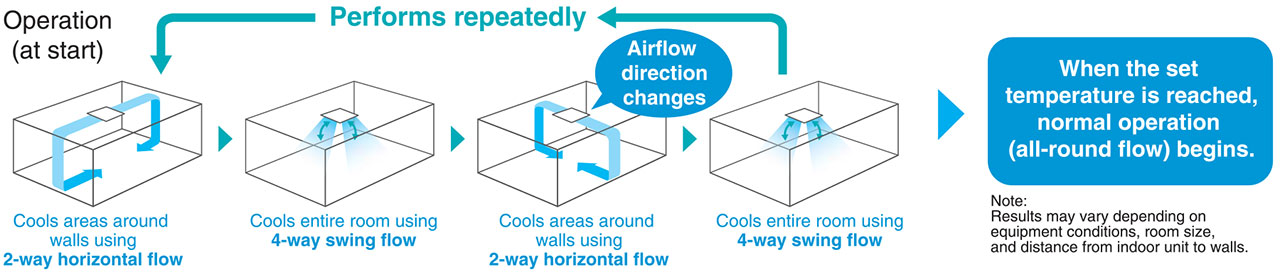

Configurations of Circulation Airflow
Cools the entire room to deliver comfort that never feels cold.

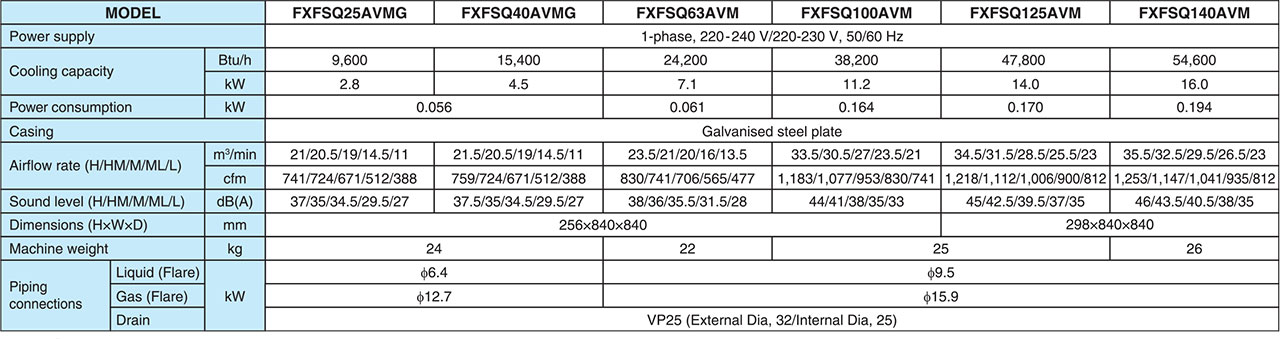

Specifications
Notes: Specifications are based on the following conditions;
- Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping length: 7.5 m, Level difference: 0 m.
- Capacity of indoor unit is only for reference. Actual capacity of indoor unit is based on the total capacity index.(See Engineering Data Book for details.)
- Sound level: Anechoic chamber conversion value, measured at a point 1.5 m downward from the unit centre. During actual operation, these values are normally somewhat higher as a result of ambient conditions.

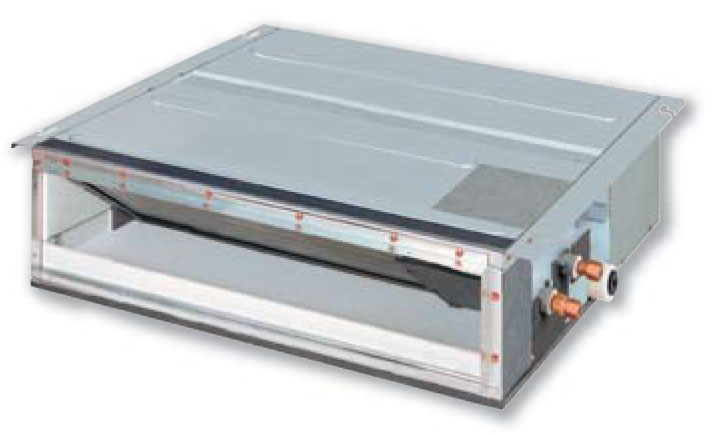

Slim Ceiling Mounted Duct Type (Standard Series)FXDQ-PD / ND

Slim design, quietness and static pressure switching

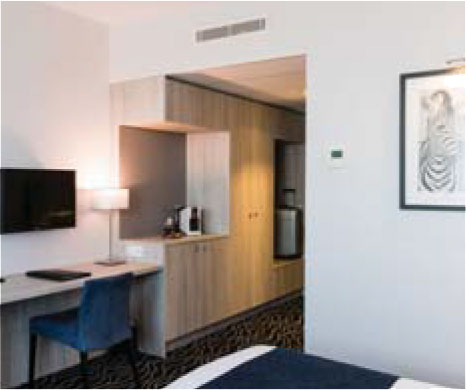

Suitable to use in drop-ceilings!

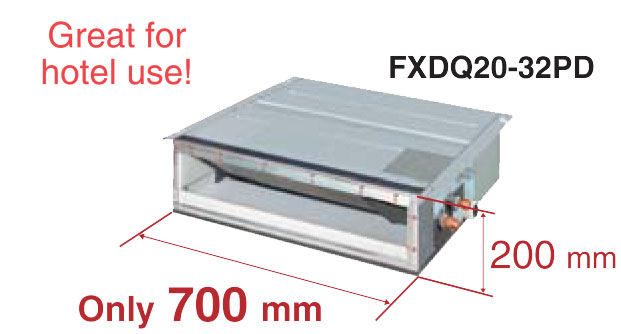

- Only 700 mm in width and 23 kg in weight, hotel use! FXDQ20-32PD this model is suitable to install in limited spaces like drop-ceilings in hotels.
- Control of the airflow rate can be selected from 3-step control and Auto. Auto airflow rate control can be selected with wired remote controller BRC1E63.
- Low operation sound level.
- External static pressure selectable by remote controller switching make this indoor unit a very comfortable and flexible model.

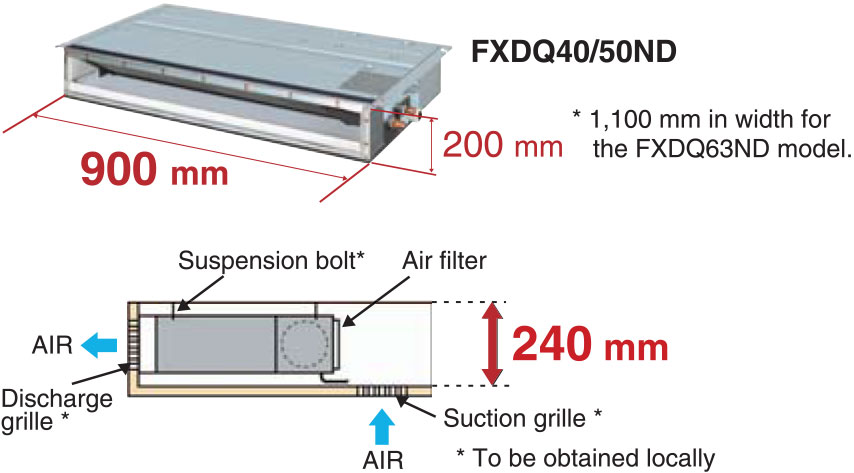

- Only 200 mm in height, this model can be installed in rooms with as little as 240 mm in height for the ceiling space between the drop-ceiling and ceiling slab.
- FXDQ-PD and FXDQ-ND models are available in two types to suit different installation conditions.

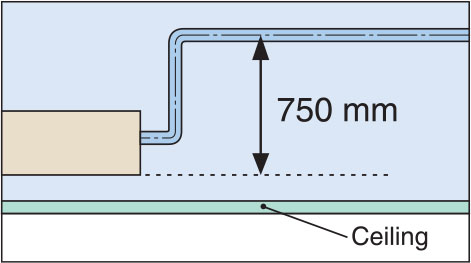

FXDQ-PD/NDVE: with a drain pump (750 mm lift) as a standard accessory
FXDQ-PD/NDVET: without a drain pump

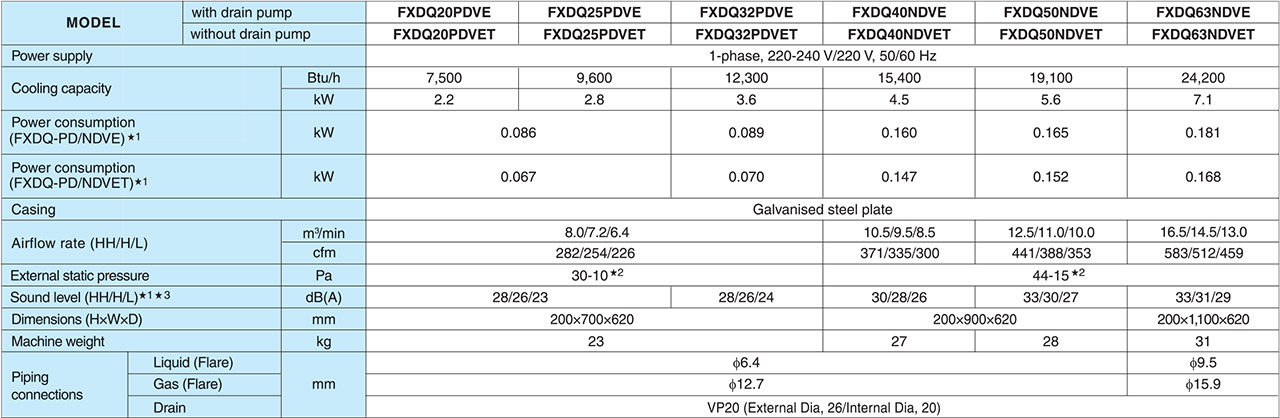

Specifications
Notes: Specifications are based on the following conditions;
- Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping length: 7.5 m, Level difference: 0 m.
- Capacity of indoor unit is only for reference. Actual capacity of indoor unit is based on the total capacity index.(See Engineering Data Book for details.)
- Sound level: Anechoic chamber conversion value, measured at a point 1.5 m downward from the unit centre. During actual operation, these values are normally somewhat higher as a result of ambient conditions.
★1 : Values are based on the following conditions: FXDQ-PD: external static pressure of 10 Pa; FXDQ-ND: external static pressure of 15 Pa.
★2 : External static pressure is changeable to set by the remote controller. This pressure means "High static pressure - Standard".(Factory setting is 10 Pa for FXDQ-PD models and 15 Pa for FXDQ-ND models.)
★3 : The values of operation sound level represent those for rear-suction operation. Sound level values for bottom-suction operation can be obtained by adding 5 dB(A).

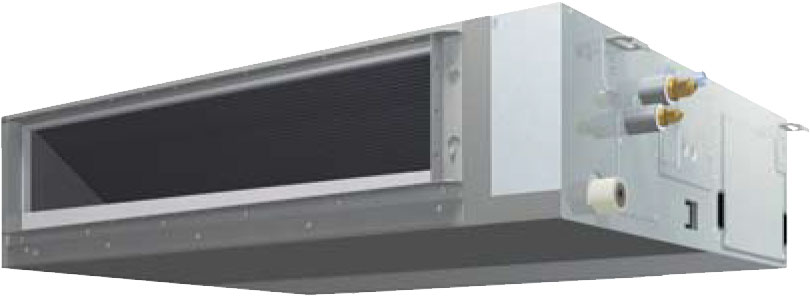

Middle Static Pressure Ceiling Mounted Duct TypeFXSQ-PA

Middle external static pressure and slim design allow flexible installations
Installation flexibility

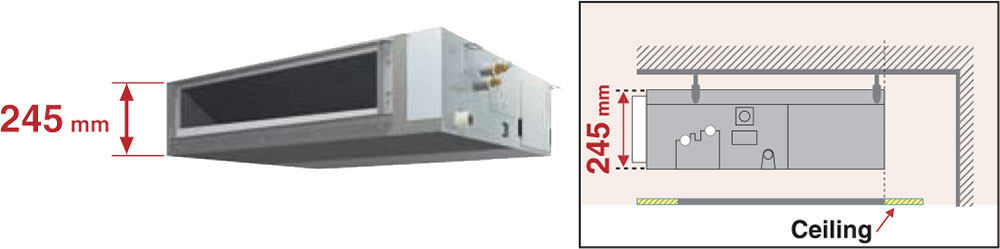

Slim design
- With a height of only 245 mm, installation is possible even in buildings with narrow ceiling spaces.

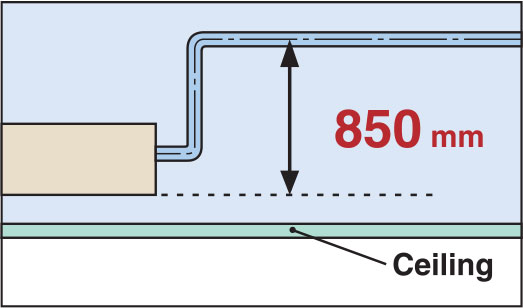

Standard DC drain pump
- DC drain pump is equipped as standard accessory with 850 mm lift.
Easy installation
Airflow rate auto adjustment function
- During installation, even if the external static pressure changes due to a change in the duct route, the airflow can be automatically adjusted to within the unit’s external static pressure range.
- Airflow rate can be controlled using a remote controller during test operation. It is automatically adjusted to the range between approximately ±10% of the rated H tap airflow.
Design flexibility

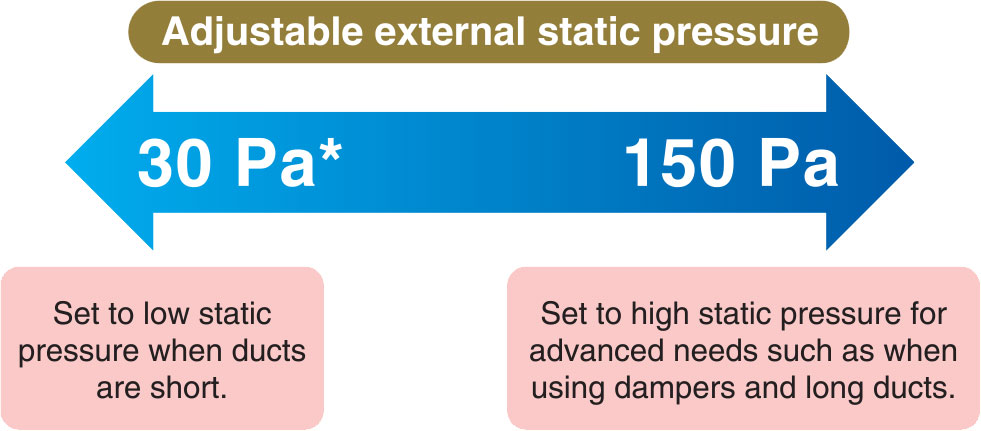

Adjustable external static pressure
- Using a DC fan motor, the external static pressure can be controlled within a range of 30 Pa* to 150 Pa.
Comfortable airflow is achieved in accordance with conditions such as duct length.
*30 Pa–150 Pa for FXSQ20-40PAVE
50 Pa–150 Pa for FXSQ50-125PAVE
50 Pa–140 Pa for FXSQ140PAVE

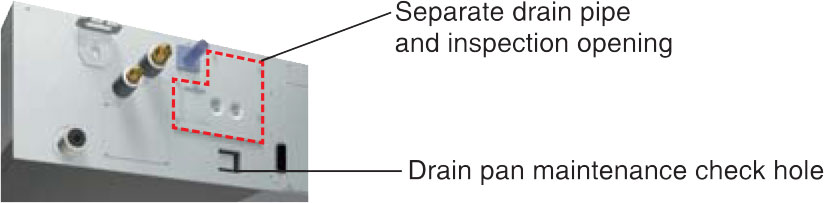

Easy maintenance
- Inspection and cleaning is facilitated by separating the drain pipe and inspection opening and by the drain pan maintenance check hole.

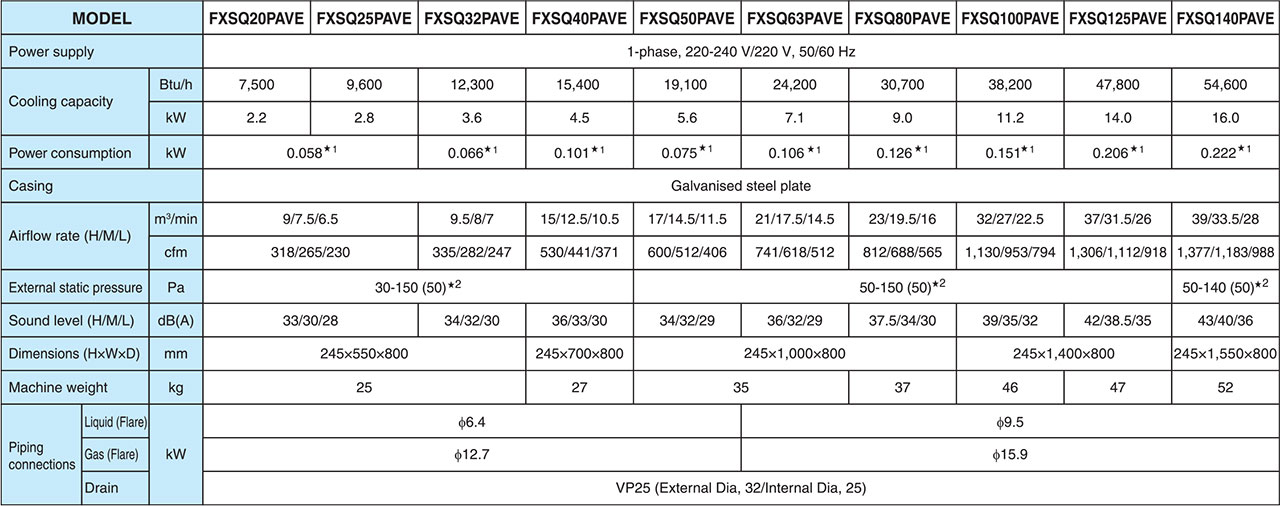

Specifications
Notes: Specifications are based on the following conditions;
- Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping length: 7.5 m, Level difference: 0 m.
- Capacity of indoor unit is only for reference. Actual capacity of indoor unit is based on the total capacity index. (See Engineering Data Book for details.)
- Sound level: Anechoic chamber conversion value, measured at a point 1.5 m downward from the unit centre. During actual operation, these values are normally somewhat higher as a result of ambient conditions.
★1: Power consumption values are based on conditions of rated external static pressure.
★2: External static pressure can be modified using a remote controller that offers thirteen (FXSQ20-40PA), eleven (FXSQ50-125PA) or ten (FXSQ140PA) levels of control. These values indicate the lowest and highest possible static pressures. The rated static pressure is 50 Pa.

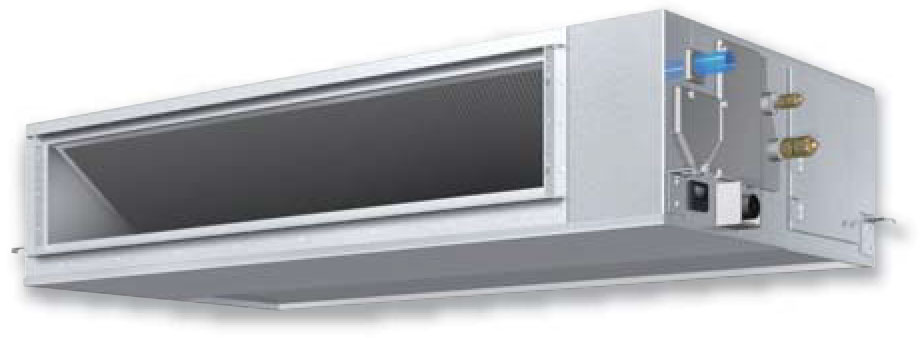

Ceiling Mounted Duct TypeFXMQ-PAVE

Middle and high static pressure allows for flexible duct design

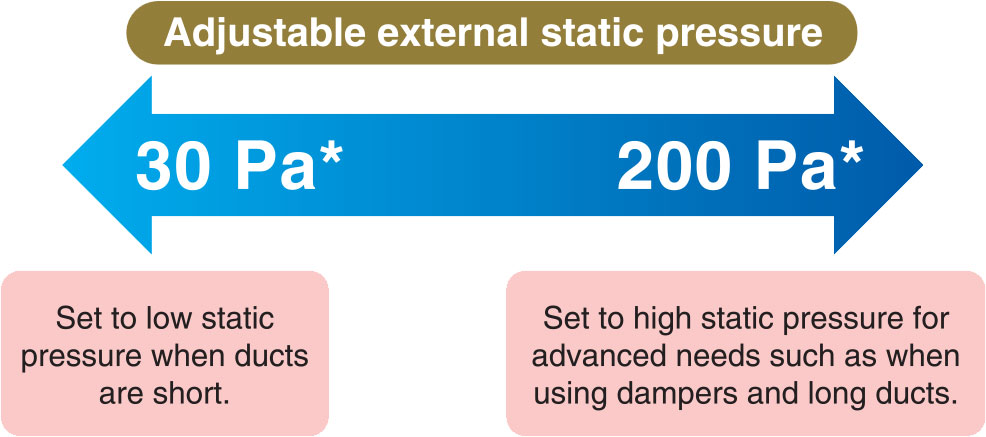

- Using a DC fan motor, the external static pressure can be controlled within a range of 30 Pa* to 200 Pa*.
Comfortable airflow is achieved in accordance with conditions such as duct length.
*30 Pa–100 Pa for FXMQ20PA-32PA
*30 Pa–160 Pa for FXMQ40PA
*50 Pa–200 Pa for FXMQ50PA-125PA
*50 Pa–140 Pa for FXMQ140PA - All models are only 300 mm in height and the weight of the FXMQ40-140PA has been reduced.

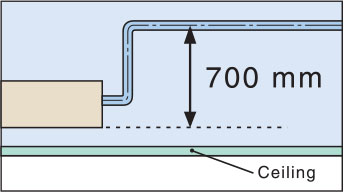

- Drain pump is equipped as standard accessory with 700 mm lift.
- Control of the airflow rate can be selected from 3-step control and Auto. Auto airflow rate control can be selected with wired remote controller BRC1E63.
- Low operation sound level
- Energy-efficient - DC fan motor is used to realise energy-saving operation.
- Easy installation - Airflow rate can be controlled using a remote controller during test operation. It is automatically adjusted to the range between approximately ±10% of the rated HH tap airflow for FXMQ20PA–125PA.

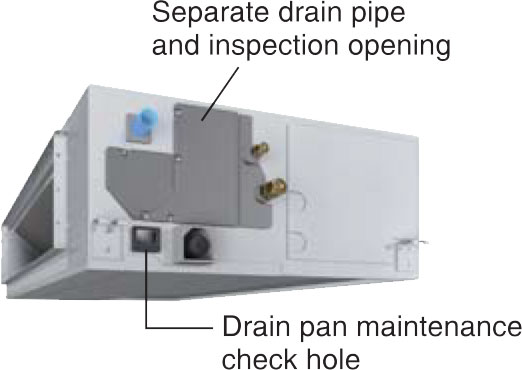

- Easy maintenance - Inspection and cleaning is facilitated by separating the drain pipe and inspection opening and by the drain pan maintenance check hole.
- An antibacterial treatment that uses silver ions has been applied to the drain pan, preventing the growth of slime, mould and bacteria that cause blockages and odours. (The lifespan of a silver ion cartridge depends on the usage environment, but should be changed once every two to three years.)

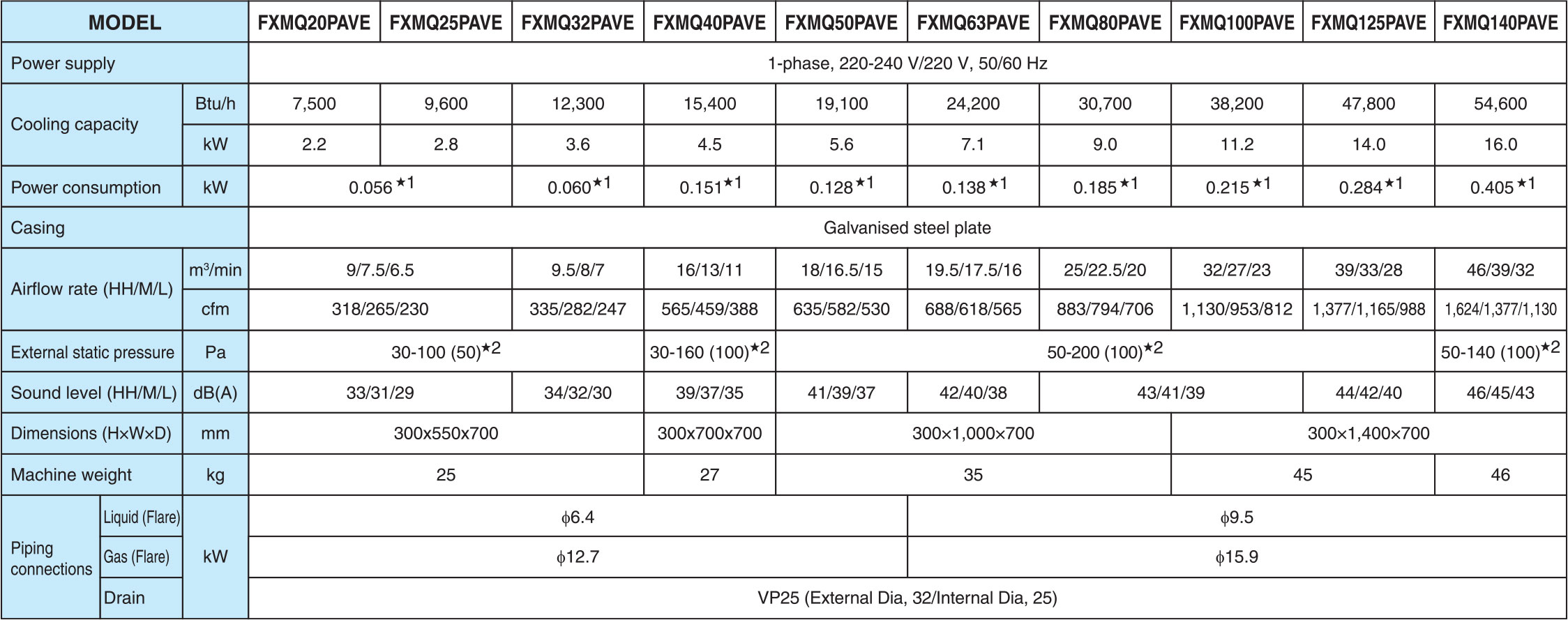

Specifications
Notes: Specifications are based on the following conditions;
- Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping length: 7.5 m, Level difference: 0 m.
- Capacity of indoor unit is only for reference. Actual capacity of indoor unit is based on the total capacity index. (See Engineering Data Book for details.)
- Sound level: Anechoic chamber conversion value, measured at a point 1.5 m downward from the unit centre. During actual operation, these values are normally somewhat higher as a result of ambient conditions.
★1: Power consumption values are based on conditions of rated external static pressure.
★2: External static pressure can be modified using a remote controller that offers seven (FXMQ20-32PA), thirteen (FXMQ40PA), fourteen (FXMQ50-125PA) or ten (FXMQ140PA) levels of control. These values indicate the lowest and highest possible static pressures. The rated static pressure is 50 Pa for FXMQ20-32PA and 100 Pa for FXMQ40-140PA.

Decoration Panel LineupOption

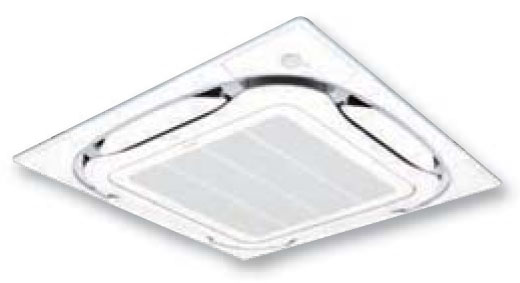

Standard panel with sensing
BYCQ125EEF (Fresh White)

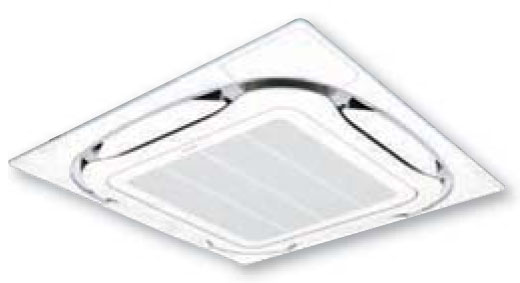

Standard panel
BYCQ125EAF (Fresh White)

Designer panel
BYCQ125EAPF (Fresh White)

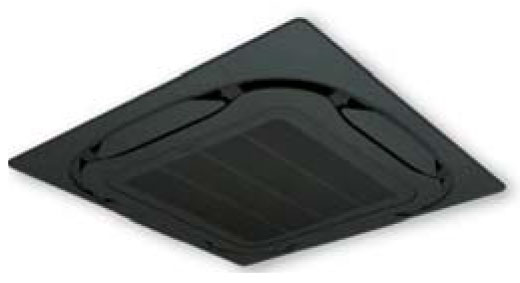

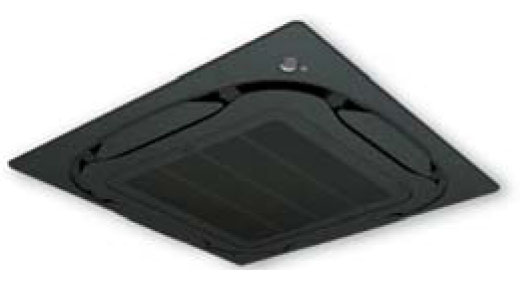

Standard panel with sensing
BYCQ125EEK (Black)

Standard panel
BYCQ125EAK (Black)

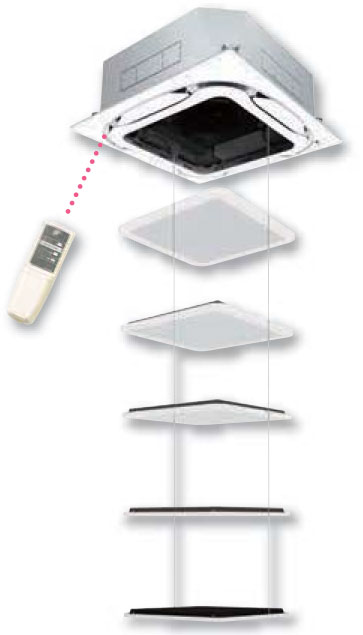

Auto grille panel
BYCQ125EASF (Fresh White)

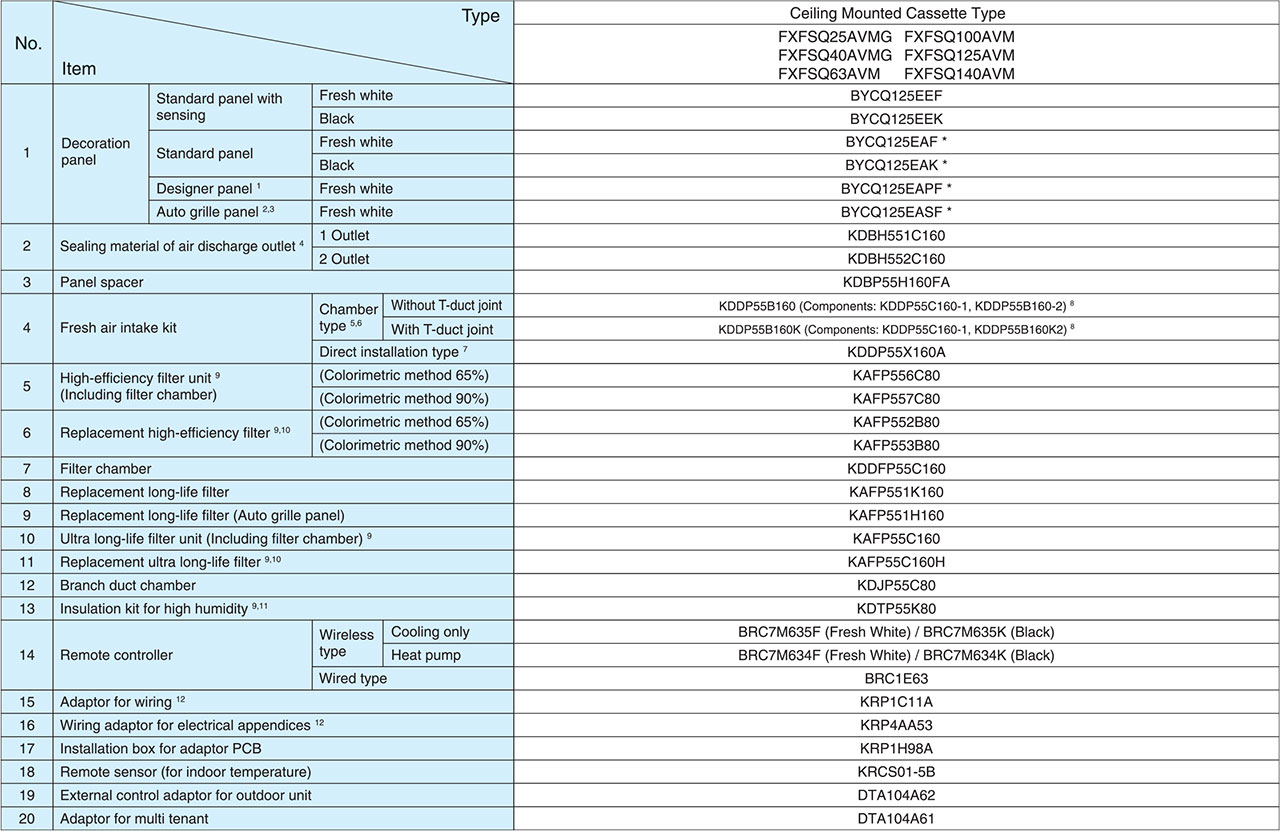

Option List for Ceiling Mounted Cassette Type

Notes:
- When installing designer panel, body height (ceiling required dimension) is 42 mm higher than standard panel. Designer panel cannot operate 2 and 3 way flow.
- A dedicated wireless remote controller (BRC16A2) for the auto grille panel is included for lowering and raising the suction grille.
- When installing auto grille panel, body height (ceiling required dimension) is 55 mm higher than standard panel.
- Circulation airflow is not available with this option.
- When installing a fresh air intake kit (chamber type), two air outlet corners are closed.
- It is recommended that the volume of outdoor air introduced through the kit is limited to 10% of the maximum airflow rate of the indoor unit. Introducing higher quantities will increase the operating sound and may also influence temperature sensing.
- The volume of fresh air for direct installation type is approximately 1% of the indoor unit airflow. The chamber type is recommended when more fresh air is necessary.
- Please order using the names of both components instead of set name.
- This option cannot be installed to designer panel and auto grille panel.
- Filter chamber is required.
- Please use in case temperature/humidity inside ceiling may get over 30 ̊C, 80% RH.
- Installation box for adaptor PCB(KRP1H98A) is necessary.
- Up to 2 adaptors can be fixed for each installation box.
- Only one installation box can be installed for each indoor unit.
*These panels do not contain the sensing function.
