VRV Ceiling Mounted (Duct Connection Type)
Introduction
VRV Ceiling Mounted (Duct Connection Type) is designed with the latest technology to cater to your air side needs.
Features
-
Quieter and energy efficient with EC Fan
-
Biggest cooling capacity of 34.9kW
-
Compact and space saving where this equipment is hung from the ceiling
-
Flexible Air Supply where the air volume and static required can be adjusted according to your premise needs
Applications
-
Industrial Plant
-
Machinery Room
-
Factory Production
-
Office

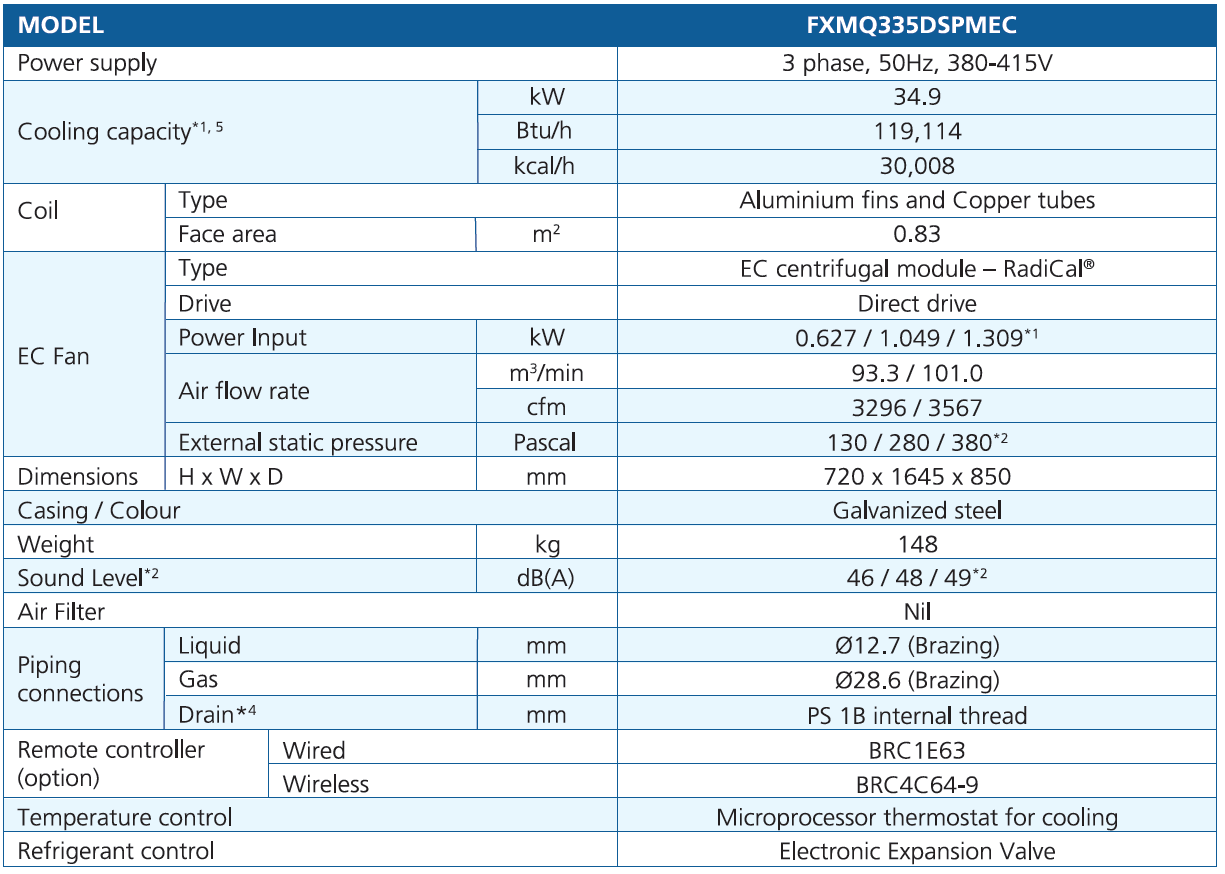

Specifications
- Duct Connection High Static Pressure Type
-
Notes:
*1. Indoor temp.:27o CDB,19o CWB / Outdoor temp.:35o CDB / Equivalent piping length:7.5m, level difference: 0m.
*2. Anechoic chamber conversion value, measured at a point downward from the unit centre, FCU with 2-meter supply duct and 1-meter return duct. These values are normally somewhat higher during actual operation as a result of ambient conditions.
*3 External static pressure (ESP) is changeable to change over the connectors inside electrical box, this pressure means “High static” operating ESP @380Pascal at air flow 101.0m3 /min power input 1.309kW, sound level 49dB(A). The External static pressure shown is factory setting the rated value exclude filter static loss.
*4 Field supply insulated condensate drainage outlet pipe with proper U-trap installation is required. Fan coil unit drainage is without drain pump system design.
*5 FXMQ335DSPMEC Capacity Index is 335. Total Capacity index of connectable indoor units must be 50%-110%of the capacity index of the outdoor unit. Connected with FXMQ335DSPMEC, outdoor units combination capacity index shall limit at 110%.
